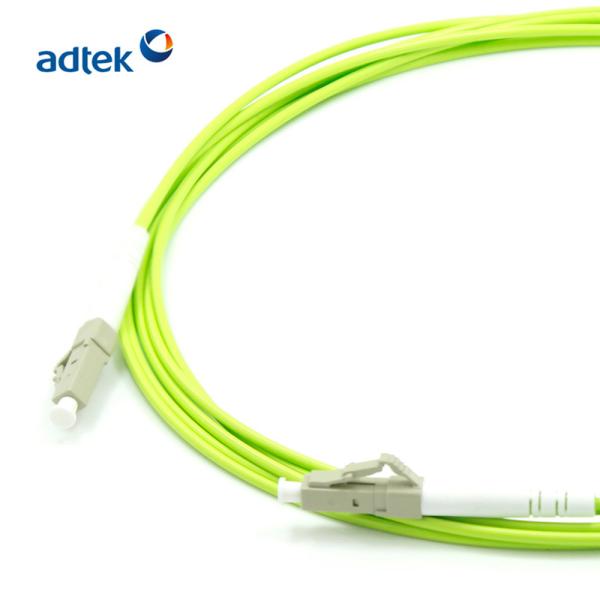

OM5 LC - LC / UPC Simplex Fiber Optic Cable PVC LSZH OFNP Outer
Jacket 3M
ADTEK LC-LC fiber optic patch cords use high precision ceramic
inserts with small concentricity error and bore diameter and
advanced grinding technology and grinding equipment, which can
provide better insertion loss and return loss to avoid degradation
of transmission performance and damage to optical transceiver
devices, as well as ensure that the surface of the fiber is free of
scratches and defects, the fiber's circular grinding offset, the
fiber's depression and ceramic end face The technical parameters
such as the surface of the fiber without scratches and defects, the
rounding offset of the fiber, the depression of the fiber and the
radius of curvature of the ceramic end face are in accordance with
the specified standards.
Frequency bandwidth, large communication capacity. Low insertion
loss, low return loss, long transmission distance.
Anti-electromagnetic interference.No crosstalk interference, good
confidentially.Small size and light weight.Meet IEC, JIS, Bellcore
international standard requirements.Stable signal and
environmental.Use standard LC, SC, ST, FC connectors, support
simplex or duplex.
OM5 50um 125um Simplex Fiber Optic Cable PVC LSZH OFNP Outer Jacket
The fiber optic patch cords are available in all connector
styles,Various color cable available upon customers' request,OS2
(9/125um), OM1 (62.5/125um), OM2 (50/125um),OM3 (50/125um) OM4
(50/125um) OM5 (50/125um) are available.Any length is available
upon request.For jacket, PVC (Riser) is normal and LSZH & Plenum
are also available.For cable type, G655 & G657 are also available.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
| Connector Type |
Performance Level
|
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
