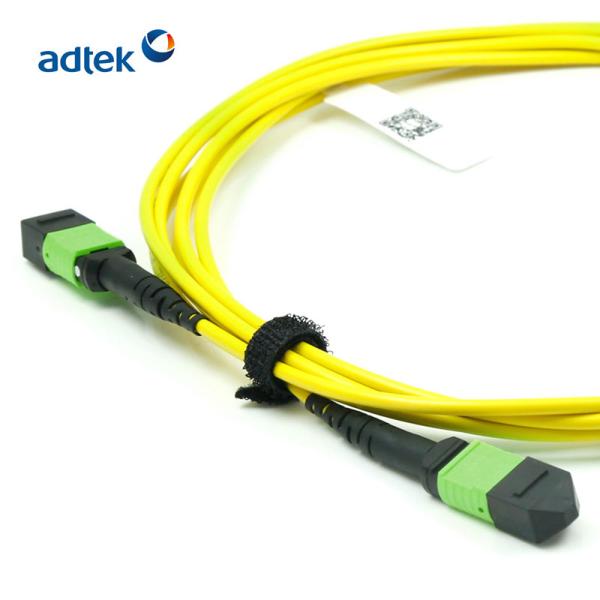

FTTX MPO MTP Patch Cord 10/40G Female for Data Center Solution
Trunk cable
ADTEK's MTP /MPO fiber optic patch cord series trunk cable
solutions provide an efficient way to quickly install large
quantities of cable while offering high flexibility in unplugging
and reuse. They are especially suited for applications requiring
high density, rapid deployment and high performance. These high
performance factory tested assemblies come pre-terminated with 12
fiber MTP connectors and are available in customer specified
lengths. 12/24/36/48/72/96/144 fibers are available. Users can also
choose from ribbon, small round, or kai-loaded fiber optic cables
depending on the project.
| Type | Singlemode APC | Multimode |
| Performance | Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
MPO/MTP fiber optic patch cord
Application
1. Telecommunication
2. Computer Networks
3. CATV networks
4. Active device termination
Features
1. Low insertion loss and High Return Loss.
2. Fully compliant with standards of IEC and YD-T826/1996.
3. Temperature stability: Operating temperature:-20 to +75°c.
4. High durability,more than 500 times mating.
5. individual package with detail information label.
6. All patch cords are 100% tested.
Ordering information
1. Connector 1.LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.Connector
2.LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2. Ferrule interface type:UPC,APC
3. Fiber type;singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4. Fober dimeter(mm):Φ0.9, Φ2.0 ,Φ3.0
5. Fiber length:Customized length
1. Adopt imported grinding equipment and grinding materials,
advanced production process to ensure more stable transmission.
2. All components are optically tested and tested in accordance
with ROHS standards.
3. Meet ANSI / TIA / EIA; ISO / IEC, GR and other international
standards for durability, moisture resistance, coupling stress,
fiber tensile force and the ability to adapt to harsh environments
such as moisture, extreme temperatures, plugging and cable pulling
stress, impact and vibration requirements.
4. Simple push-pull latching structure, easy and intuitive to
insert and remove, suitable for different installation
environments.
5. Adapted to the working temperature (-40℃~+75℃), storage
temperature (-40℃~+85℃)
