Brand Name : | ADTEK / OEM |
Model Number : | J1U1U2233P-AQ |
Certification : | ISO:9000, RoHs, CE |
Price : | $1.50 - $4.50/ Piece |
Payment Terms : | T/T |
Supply Ability : | 1000000 Piece/Pieces per Month |
Delivery Time : | 3-14days |

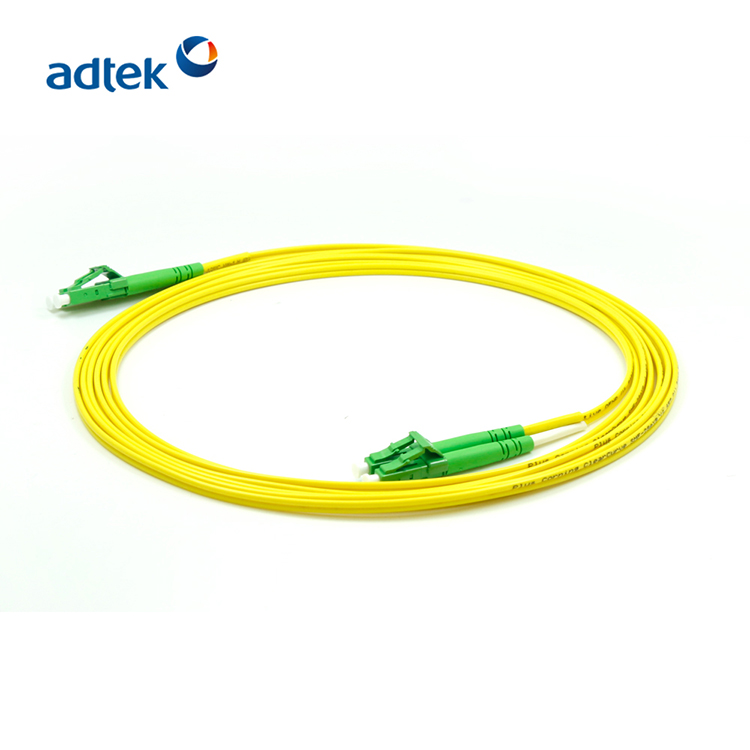

Single Mode Fiber Cable Diameter LC To LC Duplex Patch Cord PVC / LSZH / Plenum
Item | SM | MM | ||
Polishing Type | PC | UPC | APC | PC |
Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) | ||
Custom | ||||
Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
Custom | ||||
Durability(500 Mating) | 0.2 dB Max. Increase | |||
Operating Temperature | -20°C~+75°C | |||
Storage Temperature | -40°C~+75°C | |||
Remark: | Ferrule Concentricity<1μm | |||
Ferrule inner diameter tolerance+1/ 0μm | ||||
Ferrule outer diameter tolerance±0.5μm | ||||
Insertion loss<0.1dB random mating |
Applications:
1. Communication systems
2. Fiber access network
3. Fiber optic distribution frame
4. CATV
5. LAN
6. Test equipment...
The LC product line and the required fiber optic cables have become the standard interface for applications such as fiber optic communication systems, fiber to the home, fiber optic data transmission, fiber optic CATV, local area networks (LAN), optical test instruments, fiber optic sensors, and more. This product This product is not only used in these fields, but also suitable for industrial, aerospace and defense applications.
Features:
1. Low insertion loss
2. High return loss
3. High interchangeability
4. Good environmental stability
5. Various specifications
6. OEM acceptable
Shenzhen ADTEK Technology Co., Ltd. was established in 2007,is a leading professional manufacturer and exporter from China,With over 12 years' experience in the export market. ADTEK has been continually growing and expanding the product lines to keep up the pace of industry trends. leading network connection products and solutions
Ultra-large bandwidth, ultra-low loss, ultra-high speed, 400G network connection for the next generation.
![]() |
