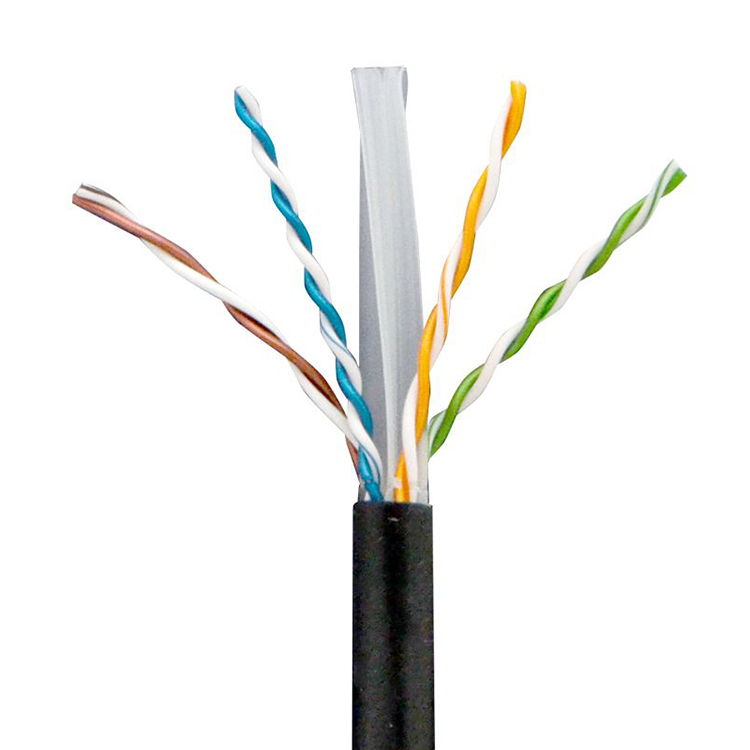

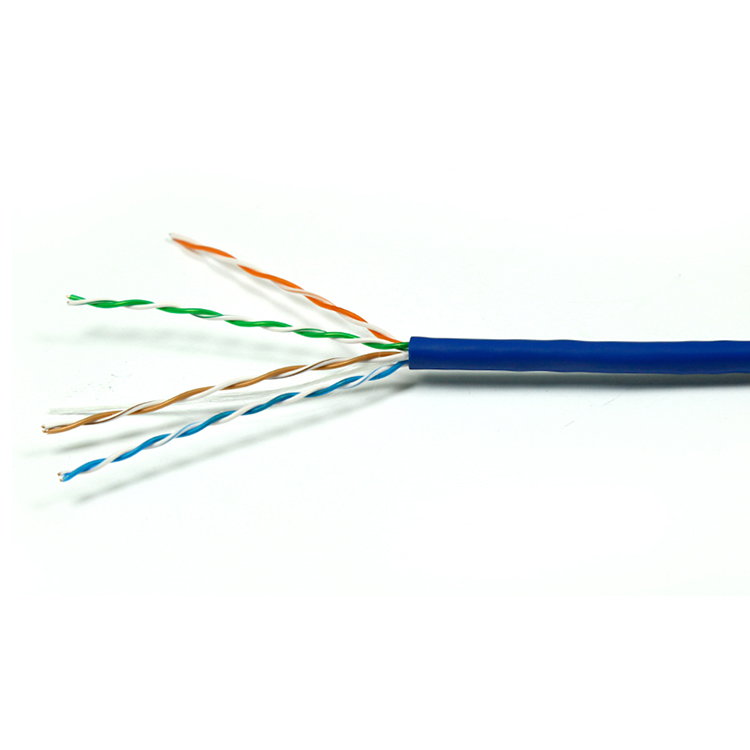

Vietnam factory price cat5e cat6 Ethernet lan cable with reelex box
| Category | Cat5, Cat6, Cat6a, Cat7, Cat8 | Cable Length | Customized |
| Cable Jacket | PVC, LSZH | Shielding Type | UTP,FTP,SFTP,SSTP |
| Cable Color | Customized | Connecting Way | T568A,T568B,Crossover |
| Interface Type | RJ45, RJ11 | Operating Temperature | -20°C to 60°C |
| Cable AWG | 24AWG/26AWG/28AWG/30AWG/ 32AWG/34AWG/36AWG/38AWG | Installation Temperature | -30 C to 50°C |
Material Instruction
1. CCA or 24AWG Soft Plain Copper.
2. Eco-friendly,pollution-free and new materials selected.Promise
new material only.
3 .Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long
working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E
Category 5 channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category
5 Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE
applications.
4. Foil shield reduces ingress of EMI interference to ensure cable
performance at high frequency levels.
5. Length cable marking enable easy identification of remaining
cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Our Value:
Initiative, Hard working ,Efficiency,Innovation, Grateful, Sharing.
Our Philosophy:
Professional casts quality,cooperation makes win-win future.
Our Solutions:
Fastest, Effective, Reliable, Flexible And Professional OEM/ODM
Solutions.
Our Certificate:
ISO9001:2015, ISO14001:2015,OHSAS18001:2007 etc.
Our Team:
We serve our every customer with fastest and most professional
response.
Our Patents:
We have 20 patents and we'll go on creating new products to master
latest market trend.
