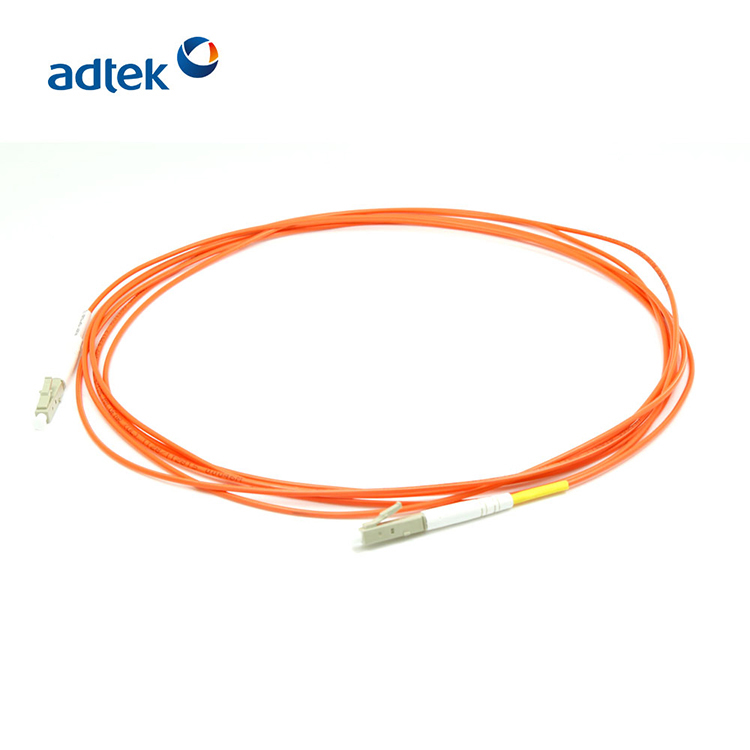

LC-LC OM1/OM2 3M 2.0mm Fiber Optic Patch Cord
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the optical energy output from the
transmitting fiber can be coupled to the receiving fiber to the
maximum extent possible and the impact on the system caused by its
intervention in the optical link can be minimized. Fiber optic
patch cable is a passive optical device to achieve the active
connection between optical fibers, it also has the function of
connecting optical fibers to active devices, optical fibers to
other passive devices, optical fibers to systems and instruments.
It also has the function of connecting fiber to active devices,
fiber to other passive devices, fiber to systems and instruments.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC,Other Type |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
Features:
• Low insertion loss, high return loss
• Good Compatibility
• High precision of mechanical dimensions
• High reliability&stability
• PC,APC,UPC optional,cable length optional
Type
Performance | Singlemode APC | Multimode |
|
| Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
Application:
• Optical access network
• Optical-fiber CATV
• A local area network(LAN)
• Test Equipment
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
1. Using imported ceramic pins, high-quality fiber optic cable,
providing better insertion loss and return loss, avoiding the
degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced foreign grinding technology and grinding equipment, to
ensure that the optical fiber circular grinding offset, fiber
depression, the surface of the fiber without scratches and defects,
the size of the radius of curvature of the ceramic end face and
other grade parameters in line with standard regulations.
