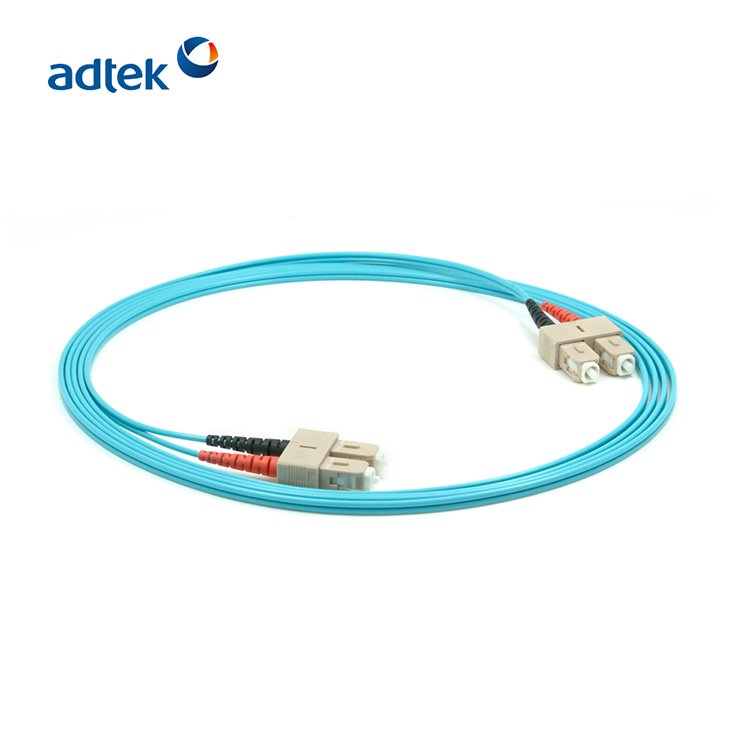

DX Duplex Multimode OM3 Fiber Optic Patch Cord SC TO SC UPC LSZH
PVC
OM3 Optic Fiber Patch Cord SC TO SC UPC LSZH/PVC DX Duplex
Multimode
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the optical energy output from the
transmitting fiber can be coupled to the receiving fiber to the
maximum extent possible and the impact on the system caused by its
intervention in the optical link can be minimized. Fiber optic
patch cable is a passive optical device to achieve the active
connection between optical fibers, it also has the function of
connecting optical fibers to active devices, optical fibers to
other passive devices, optical fibers to systems and instruments.
It also has the function of connecting fiber to active devices,
fiber to other passive devices, fiber to systems and instruments.
1. All components are optically tested and tested in accordance
with ROHS standards.
2. Comply with ANSI / TIA / EIA and ISO / IEC for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration requirements.
Type
Performance | Singlemode APC | Multimode |
|
| Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
Applications:
1. Communication systems
2. Fiber access network
3. Fiber optic distribution frame
4. CATV
5. LAN
6. Test equipment...
1. Adopt imported grinding equipment and grinding materials,
advanced production process to ensure more stable transmission.
2. All components are optically tested and tested in accordance
with ROHS standards.
3. Meet ANSI / TIA / EIA; ISO / IEC, GR and other international
standards for durability, moisture resistance, coupling stress,
fiber tensile force and the ability to adapt to harsh environments
such as moisture, extreme temperatures, plugging and cable pulling
stress, impact and vibration requirements.
4. Simple push-pull latching structure, easy and intuitive to
insert and remove, suitable for different installation
environments.
5. Adapted to the working temperature (-40℃~+75℃), storage
temperature (-40℃~+85℃)
Features:
1. Low insertion loss
2. High return loss
3. High interchangeability
4. Good environmental stability
5. Various specifications
6. OEM acceptable
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
