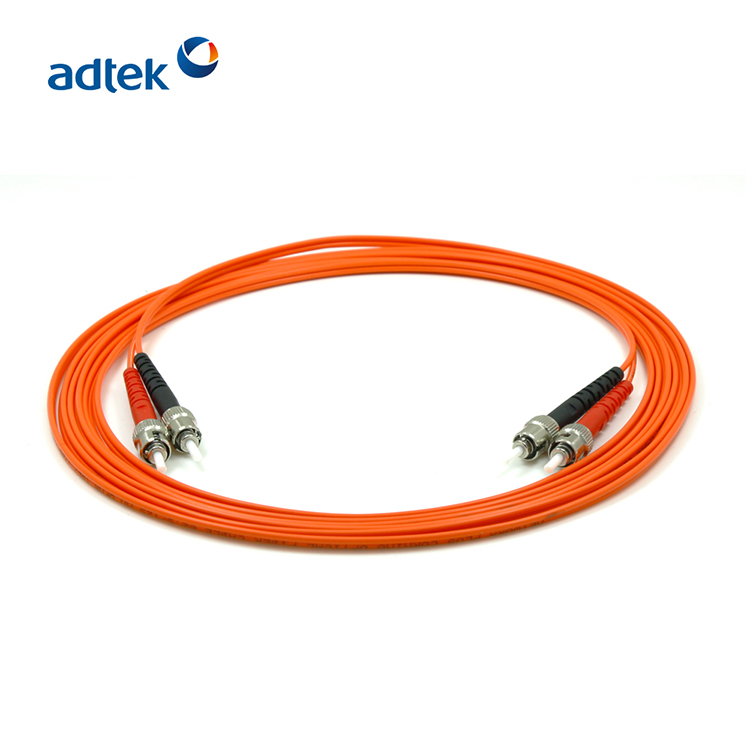

Duplex OM1 OM2 Multimode Fiber Patch Cord 4 Fibers For FTTH System
ST-ST Duplex Multimode OM1/OM2 Fiber Optic Fiber Patch Cord 4
Fibers
1. Adopt imported grinding equipment and grinding materials,
advanced production process to ensure more stable transmission.
2. All components are optically tested and tested in accordance
with ROHS standards.
3. Meet ANSI / TIA / EIA; ISO / IEC, GR and other international
standards for durability, moisture resistance, coupling stress,
fiber tensile force and the ability to adapt to harsh environments
such as moisture, extreme temperatures, plugging and cable pulling
stress, impact and vibration requirements.
4. Simple push-pull latching structure, easy and intuitive to
insert and remove, suitable for different installation
environments.
5. Adapted to the working temperature (-40℃~+75℃), storage
temperature (-40℃~+85℃)
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
Applications:
1. Communication systems
2. Fiber access network
3. Fiber optic distribution frame
4. CATV
5. LAN
6. Test equipment...
Features:
1. Low insertion loss
2. High return loss
3. High interchangeability
4. Good environmental stability
5. Various specifications
6. OEM acceptable
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the optical energy output from the
transmitting fiber can be coupled to the receiving fiber to the
maximum extent possible and the impact on the system caused by its
intervention in the optical link can be minimized. Fiber optic
patch cable is a passive optical device to achieve the active
connection between optical fibers, it also has the function of
connecting optical fibers to active devices, optical fibers to
other passive devices, optical fibers to systems and instruments.
It also has the function of connecting fiber to active devices,
fiber to other passive devices, fiber to systems and instruments.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
