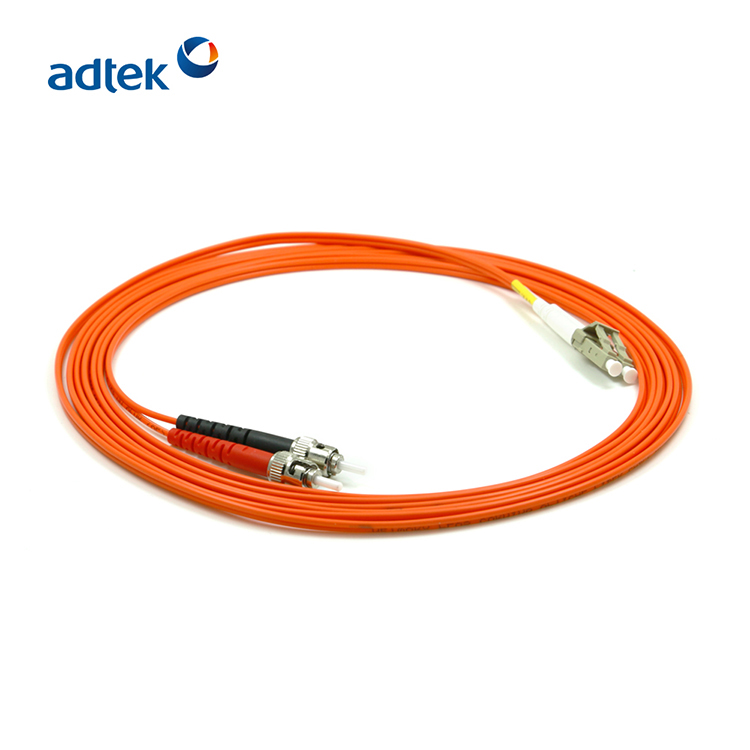

LC ST Multimode 2.0mm OM2 Duplex Fiber Patch Cord Custom Length
LC-ST Multimode Duplex 2.0mm 3M OM2 Fiber Optic Patch Cord Cable
Jumper
ST/PC-LC/PC fiber optic patch cordis used for linking the equipment
and components in the fiber optic network. They are with various
kinds of fiber optic connector types. The fiber optic patch cord
types are classified by the fiber optic connector types. There are
PC, UPC, APC type fiber patch cord. They are different because of
the polish of fiber connector.
ST-LC Fiber Optic Patch Cord is a fiber optic cable capped at
either end with connectors that allow it to be rapidly and
conveniently connected to CATV, an optical switch or other
telecommunication equipment. Its thick layer of protection is used
to connect the optical transmitter, receiver, and the terminal box.
This is known as "interconnect-style cabling".
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
1. Adopt imported grinding equipment and grinding materials,
advanced production process to ensure more stable transmission.
2. All components are optically tested and tested in accordance
with ROHS standards.
3. Meet ANSI / TIA / EIA; ISO / IEC, GR and other international
standards for durability, moisture resistance, coupling stress,
fiber tensile force and the ability to adapt to harsh environments
such as moisture, extreme temperatures, plugging and cable pulling
stress, impact and vibration requirements.
4. Simple push-pull latching structure, easy and intuitive to
insert and remove, suitable for different installation
environments.
5. Adapted to the working temperature (-40℃~+75℃), storage
temperature (-40℃~+85℃)
