Flat 0.9mm 2.0mm 3.0mm OM2 Fiber Optic Jumper Cable Orange Color

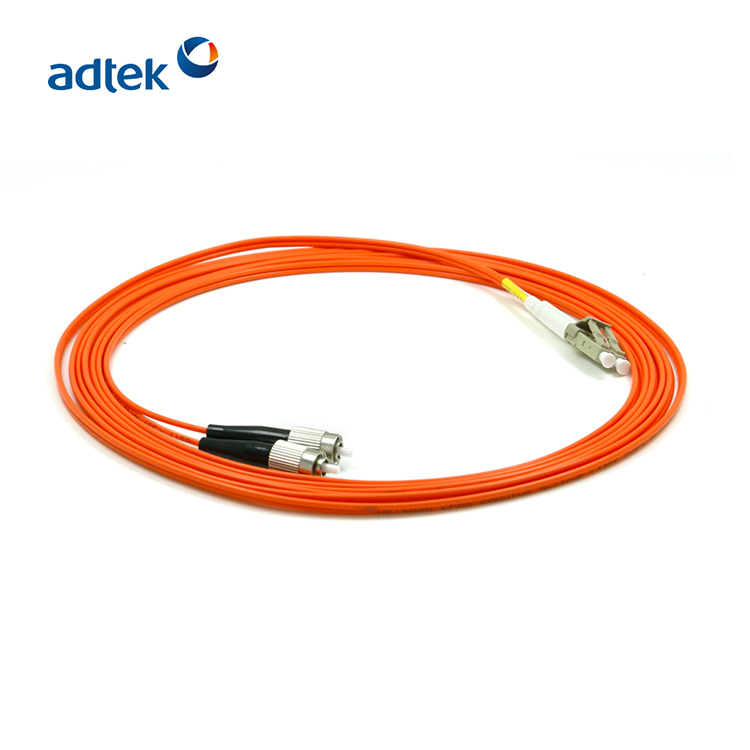

LC-FC/UPC DX OM2 Orange Color Fiber Optical Patch Cord Cable Jumper
1. Using imported ceramic pins, high-quality fiber optic cable,
providing better insertion loss and return loss, avoiding the
degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced foreign grinding technology and grinding equipment, to
ensure that the optical fiber circular grinding offset, fiber
depression, the surface of the fiber without scratches and defects,
the size of the radius of curvature of the ceramic end face and
other grade parameters in line with standard regulations.
3. Small insertion loss, high return loss, good interchangeability,
excellent repetitive plugging performance, easy to use.
4. Provide a full set of customized services according to customer
requirements
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Comply with ANSI / TIA / EIA and ISO / IEC for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration requirements.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the optical energy output from the
transmitting fiber can be coupled to the receiving fiber to the
maximum extent possible and the impact on the system caused by its
intervention in the optical link can be minimized. Fiber optic
patch cable is a passive optical device to achieve the active
connection between optical fibers, it also has the function of
connecting optical fibers to active devices, optical fibers to
other passive devices, optical fibers to systems and instruments.
It also has the function of connecting fiber to active devices,
fiber to other passive devices, fiber to systems and instruments.
| Item | SM | MM |
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) |
| Custom | | | | |
| Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
| Custom | | | | |
| Durability(500 Mating) | 0.2 dB Max. Increase |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+75°C |
| Remark: | Ferrule Concentricity<1μm |
| Ferrule inner diameter tolerance+1/ 0μm |
| Ferrule outer diameter tolerance±0.5μm |
| Insertion loss<0.1dB random mating |
Overview
Fiber Optic Patch cords are the basic passive components of Optical
Fiber Telecommunication System,are utilized to achieve accurate
mounting for precision alignment of fiber optical components.
HJ provide high quality optical fiber patch cords,100% tested
quality guarantee before delivery,with ISO standards and RoHS
compliant.
Our product range covers both single mode and multi-mode patch
cords,and be available for all major fiber connector types.
Features
High quality performance and Environmental stability
Good Repeatability, and Exchangeability
Available fiber cable diameters: 0.9mm, 2.0mm, 0mm
Fiber cores: Simplex, Duplex or multi-fiber 4 fibers, 6 fibers, 8
fibers, 12 fibers, 24 fibers
Pigtail Types: Bundle, Ribbon, Waterproof, Armored
Fiber Mode: Single-Mode, Multi-Mode(OM1/OM2/OM3/OM4)
Connector Types: LC, FC, SC, ST, MU, E2000, etc
Patch Cord Length: on demand of customers
Compliant to IEC, TIA/EIA, NTT standard
