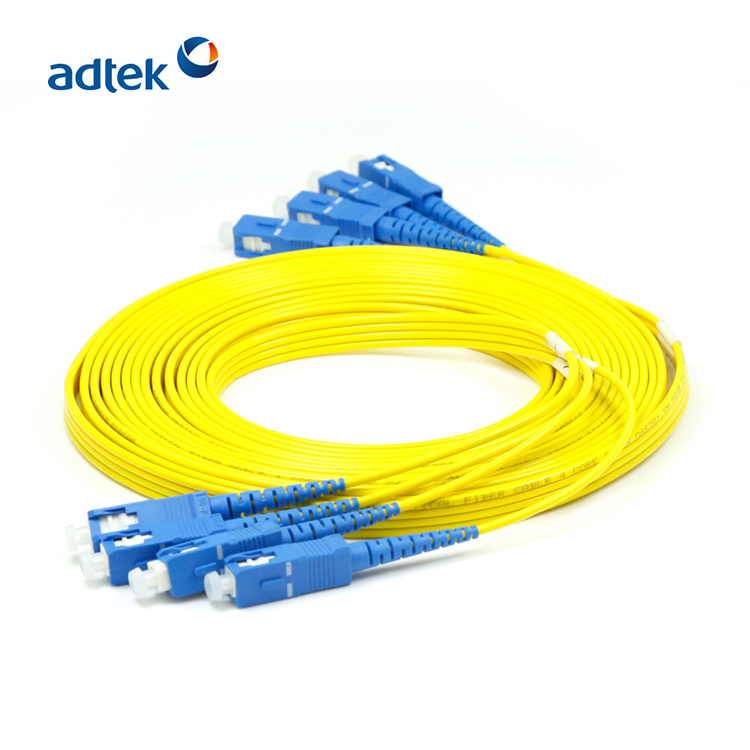

4 Fibers SC SC Single Mode Fiber Patch Cord LSZH Simplex Low
Insertion Loss
ADTEK's 9/125 single core single mode fiber is constructed from the
highest quality components and is warranted for a period of one
year. These fiber optic patch cords feature OFNR jacketing with
SC-type connectors. Our fiber optic cables are functionally tested
to guarantee the highest performance when delivered. Uptime of
critical networks is guaranteed with our fiber optic patch cords.
Custom lengths, connector combinations and polishes are available.
For more information, contact us today.
Features
1. For connecting patch panels and/or network devices that use
SC-type connectors and require 9/125 single-mode patch cords.
2. Ceramic sleeves provide precision collimation.
3. Rigorous functional testing ensures optimal cable performance.
4.
4. Connectors are PC polished.
The SC product line and the required fiber optic cables have become
the standard interface for applications such as fiber optic
communication systems, fiber to the home, fiber optic data
transmission, fiber optic CATV, local area networks (LAN), optical
test instruments, fiber optic sensors, and more. This product This
product is not only used in these fields, but also suitable for
industrial, aerospace and defense applications.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
Features
· Low insertion loss and high return loss
· The patch cord can be customized according to customer’s specific
requirements
· Strict quality testing: IL and RL 100% test.
· All materials meet the RoHS standard.
Applications
· Optical fiber communication system
· telecommunication network
· LANs and WANs
· CATV
· FTTX
