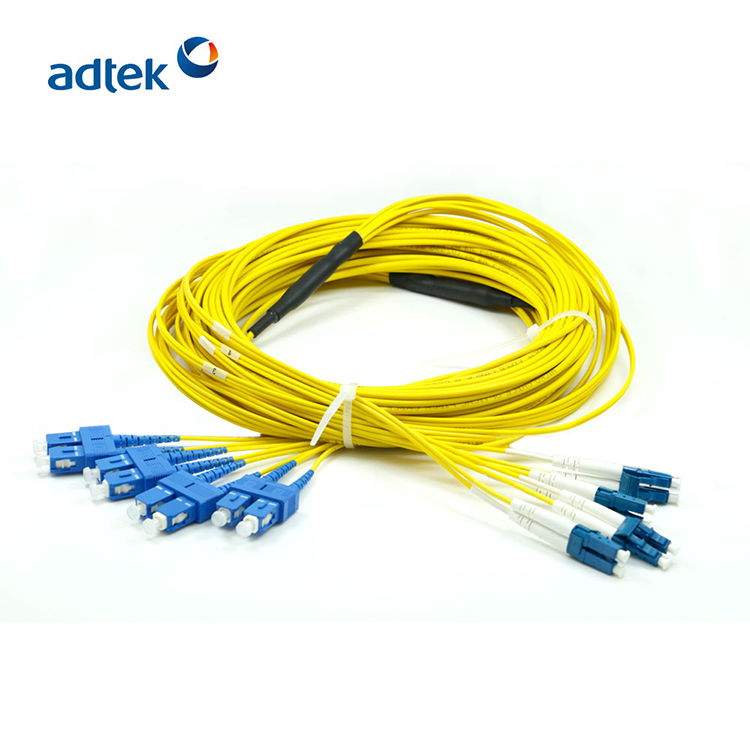

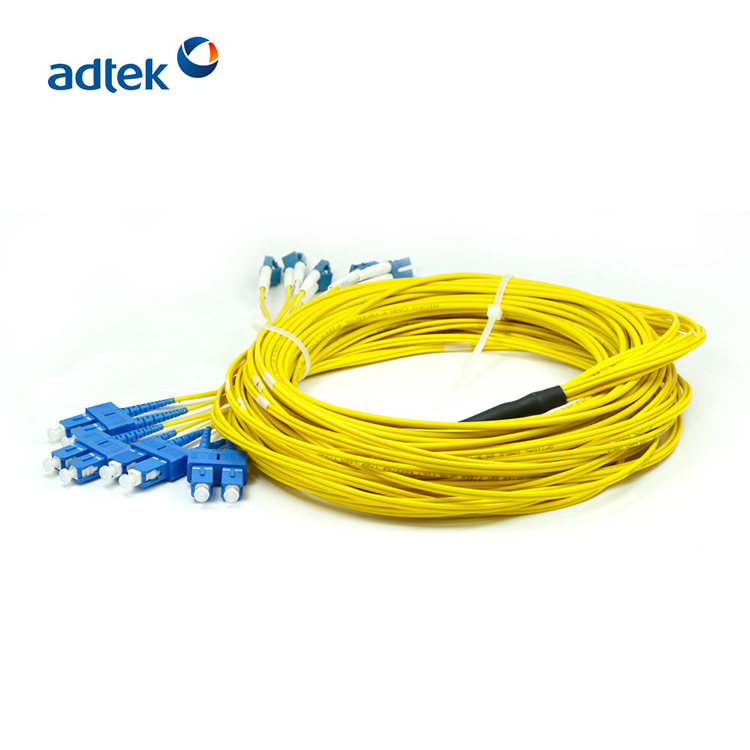

LC/UPC-SC/UPC Duplex 8 Fiber Single Mode Cable PVC / LSZH Pre
Terminated Fiber Optic Cable
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
duplex optical patch cord that provides high-speed 10 Gigabit
transmission.
This high-quality Multi-mode fiber optic patch lead is designed
with OM3/OM4 fiber optic cable, ST, SC, LC, FC and MT-RJ of PC/UPC
connector.
Durable connection, resistant to pulls, strains and impacts during
installation.
Low insertion loss& electrical interference.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
PC, UPC or APC polishing (APC for SM)
Standard housing, ceramic ferrule
Cable diameter: 2.0mm or 3.0mm or 0.9mm
Fiber diameter: 9/125μm, 62.5/125μm or 50/125μm
Insertion loss: SM Less than 0.3 dB MM Less than 0.3dB
Return loss: PC SM larger than 45 dB
UPC SM larger than 50dB
APC SM larger than 60dB
UPC MM larger than 20dB
Repeatability: Less than 0.2 dB
Changeability: Less than 0.1 dB
Operating temperature range: -40~ 60 degree Celsius
Storage temperature range: -40~ 60 degree Celsius
Tensile strength: 100N
Min. bending radius: 35mm
1, The product adopts imported production of ceramic pins, imported
high-quality fiber optic cable.
2, The introduction of foreign advanced grinding technology and
grinding equipment, to ensure that the optical fiber circular
grinding offset, the optical fiber depression, the surface of the
fiber without scratches and defects, the size of the radius of
curvature of the end face of the ceramic capital and other grade
parameters in line with standard regulations.
3, Insertion loss is small, return loss, good interchangeability,
repeated plugging performance is excellent, easy to use.
4, According to customer requirements to provide a full set of
customized services.
5,All components are optically tested and tested in accordance with
ROHS standards.
6, Consistent with ANSI / TIA / EIA and ISO / IEC for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging forces and cable tensile stress, impact and
vibration requirements.
7, Operating temperature (-40℃~+75℃), Storage temperature
(-40℃~+85℃)
