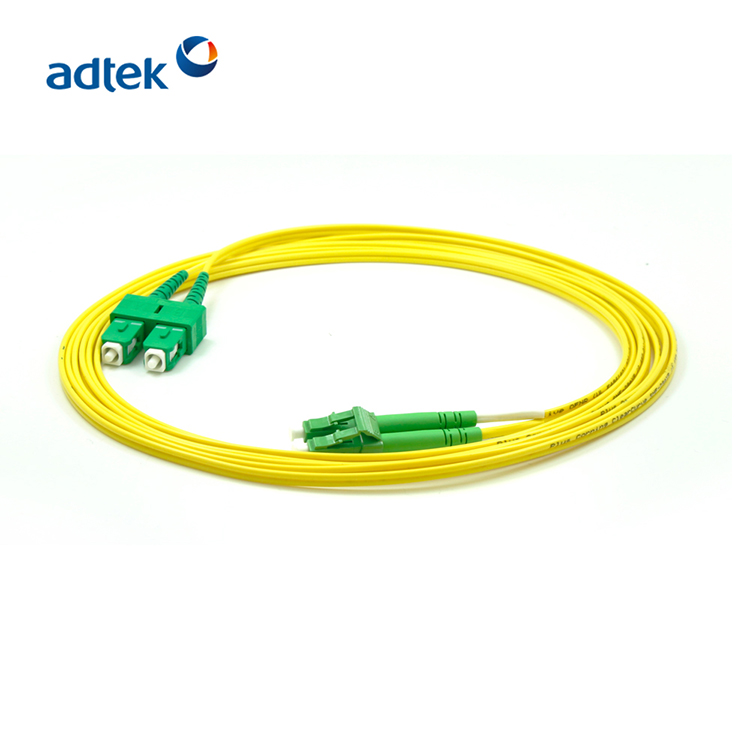

Optical Fiber Patch Cord Duplex LC to SC Singlemode Customization
Support
Description:
Fiber optic patch cord is suited for equipment jumper cable, cross
connects, and work area connections.All fiber optic patch cords
are manufactured with telecom class and polished A, and 100%
factory tested to ensure performance to standards.
Optical fiber jumper / pigtail can be divided into common
single-mode and multi-mode jumpers according to different
transmission
media; according to the connector structure, it can be divided into
FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO
jumper, Mu jumper, SMA jumper, FDDI jumper, E2000 jumper, din4
jumper, D4 jumper and other forms.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Features:
♦ Factory-terminated and Tested
♦ Good durabilityGood exchangeability
♦ High temperature stability
♦ Low insertion loss and added loss.
♦ PVC,LSZH, OFNP, OFNR cable jacket.
♦ RoHS materials compliant.
Application:
♦ Telecom Network
♦Local Ring Network
♦ Optical Fiber Sensor
♦ Optical Fiber Test Equipment
♦ Optical Fiber Communication System
♦ FTTH,LAN,PON & Optical CATV
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
The LC product line and the required fiber optic cables have become
the standard interface for applications such as fiber optic
communication systems, fiber to the home, fiber optic data
transmission, fiber optic CATV, local area networks (LAN), optical
test instruments, fiber optic sensors, and more. This product This
product is not only used in these fields, but also suitable for
industrial, aerospace and defense applications.
1. Using high precision ceramic insert with small concentricity
error and inner hole diameter to provide better insertion loss and
return loss to avoid degradation of transmission performance and
damage to optical transceiver devices.
2. Introduction of foreign advanced grinding technology and
grinding equipment to ensure that the optical fiber's circular
grinding offset, the fiber's depression, the fiber's surface
without scratches and defects, the size of the radius of curvature
of the ceramic capital end face and other grade parameters comply
with the standard.
3. Insertion loss is small, return loss is large,
interchangeability is good, repeated plugging performance is
excellent, easy to use.
4. Can provide a full set of customized services according to
customer requirements. 5.
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Compliance with ANSI / TIA / EIA and ISO / IEC requirements for
durability, moisture resistance, coupling stress, fiber optic
tensile force and adaptability to harsh environments such as
humidity, temperature extremes, plugging and unplugging forces and
cable tensile stress, impact and vibration.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
