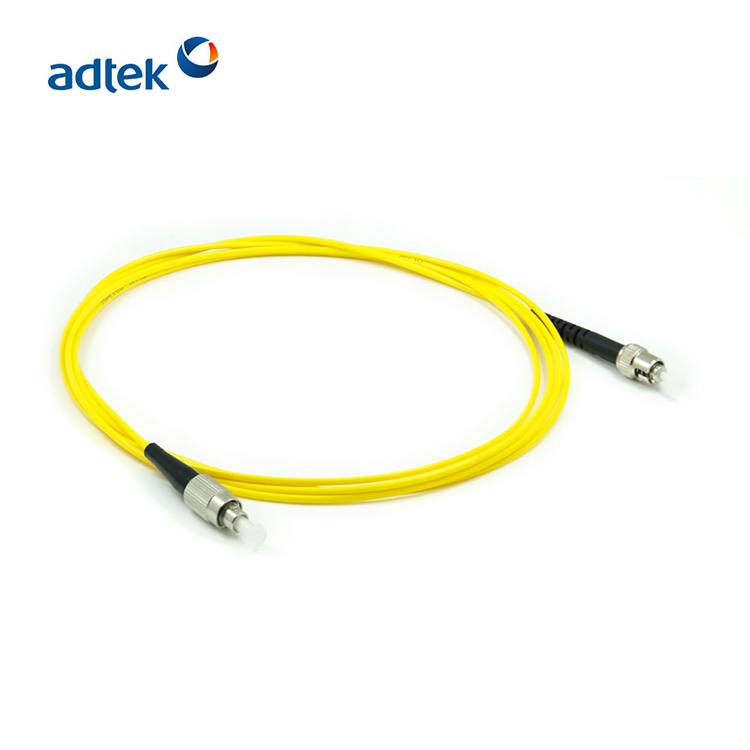

    ST/UPC-FC/UPC Single Mode Fiber Patch Cord Simplex 3M Patch Cable

    Ask Lasest Price
    Brand Name : ADTEK / OEM
    Model Number : J4A4A2293MP-YL
    Certification : ISO:9000, RoHs, CE
    Price : $0.20 - $4.50/ Piece
    Payment Terms : T/T
    Supply Ability : 1000000 Piece/Pieces per Month
    Delivery Time : 3-14days
    • Product Details
    • Company Profile

    ST/UPC-FC/UPC Single Mode Fiber Patch Cord Simplex 3M Patch Cable

    ST / UPC - FC / UPC Single Mode Fiber Patch Cord Simplex 3M Patch Cable


    The ST-FC product line and the required fiber optic cables have become the standard interface for applications such as fiber optic communication systems, fiber to the home, fiber optic data transmission, fiber optic CATV, local area networks (LAN), optical test instruments, fiber optic sensors, and more. This product This product is not only used in these fields, but also suitable for industrial, aerospace and defense applications.


    Range of ModeSingle mode or Multi mode
    Cable TypeSimplex, Duplex Ziocord. or Multi-cores
    Connector StyleSC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
    Polish or Ferrule Interface TypePC, UPC, APC
    Cable Diameter0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
    Outer JacketPVC /LSZH/OFNP
    Jacket ColorSM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
    Durability500 cycles(0.2 dB max increase). 1000mate/de mate cycles
    Operating Temp.-25℃ to +70℃
    Storage Temp.

    -40 to +85


    1. The product uses a high precision ceramic insert with small concentricity error and bore diameter to provide better insertion loss and return loss to avoid degradation of transmission performance and damage to optical transceiver devices.

    2. Meets ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber optic tensile force and resistance to moisture, temperature extremes, plugging and unplugging forces and cable tensile stress, requirements for harsh environmental resilience such as shock and vibration.


    Type
    Performance
    SinglemodeMultimode
    Standard LossLow LossStandard LossLow Loss
    Insertion lossMaximum Value≤0.7dB≤0.35dB≤0.5dB≤0.35dB
    Typical Value0.4dB0.2dB0.35dB0.2dB
    Return Loss≥60 dB≥20dB
    Test Wavelength1310nm / 1550nm850nm / 1300nm

    It is a device used to make removable (movable) connections between optical fibers. It is a precision buttressing of the two ends of an optical fiber so that the light energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent possible and the impact on the system due to its intervention in the optical link can be minimized. Fiber optic patch cord is a passive optical device to realize the active connection between optical fibers, it also has the function of connecting optical fibers to active devices, optical fibers to other passive devices, optical fibers to systems and instruments.
