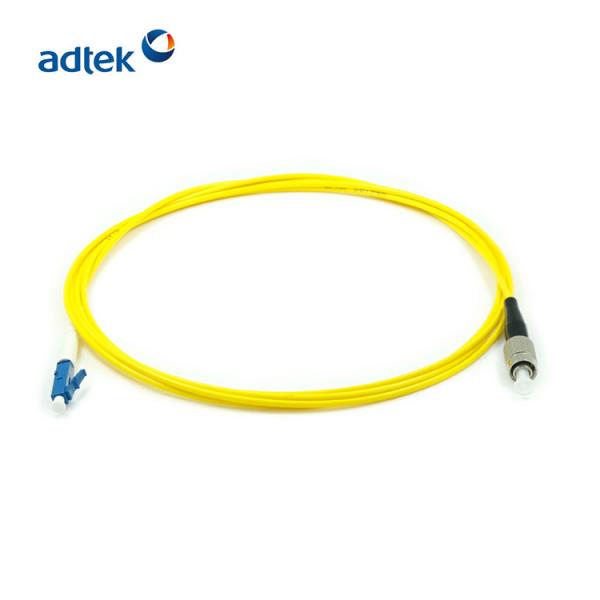

9/125 Single Mode Fiber Patch Cables LC/UPC-FC/UPC Simplex 2.0mm
1. Using high precision ceramic insert with small concentricity
error and inner hole diameter to provide better insertion loss and
return loss to avoid degradation of transmission performance and
damage to optical transceiver devices.
2. Introduction of foreign advanced grinding technology and
grinding equipment to ensure that the optical fiber's circular
grinding offset, the fiber's depression, the fiber's surface
without scratches and defects, the size of the radius of curvature
of the ceramic capital end face and other grade parameters comply
with the standard.
3. Insertion loss is small, return loss is large,
interchangeability is good, repeated plugging performance is
excellent, easy to use.
4. Can provide a full set of customized services according to
customer requirements. 5.
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Compliance with ANSI / TIA / EIA and ISO / IEC requirements for
durability, moisture resistance, coupling stress, fiber optic
tensile force and adaptability to harsh environments such as
humidity, temperature extremes, plugging and unplugging forces and
cable tensile stress, impact and vibration.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
| Item | SM | MM |
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) |
| Custom | | | | |
| Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
| Custom | | | | |
| Durability(500 Mating) | 0.2 dB Max. Increase |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+75°C |
| Remark: | Ferrule Concentricity<1μm |
| Ferrule inner diameter tolerance+1/ 0μm |
| Ferrule outer diameter tolerance±0.5μm |
| Insertion loss<0.1dB random mating |
Fiber optic patch cord is a fiber optic cable capped at both ends
with connectors that allow it to be rapidly and conveniently
connected to CATV, optical switch, or other telecommunication
equipment. With a thick layer of protection, it is used to connect
the optical transmitter, receiver, and the terminal box, which is
known as "interconnect-style cabling".
Features:
Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitting equipment
Defense combat readiness
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the light energy output from the transmitting
fiber can be coupled to the receiving fiber to the maximum extent
possible and the impact on the system due to its intervention in
the optical link can be minimized. Fiber optic patch cord is a
passive optical device to realize the active connection between
optical fibers, it also has the function of connecting optical
fibers to active devices, optical fibers to other passive devices,
optical fibers to systems and instruments.
Type
Performance | Singlemode | Multimode |
|
| Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
