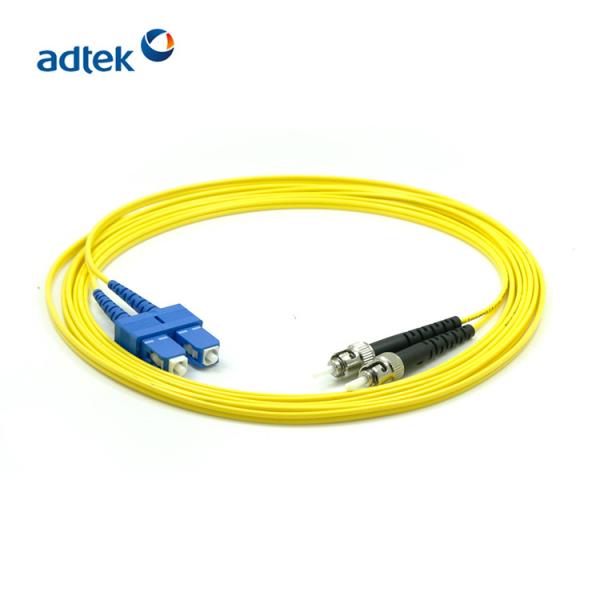

SC - ST Duplex Fiber Patch Cord PVC Yellow 3M Fiber Cable OEM / ODM
The SC-ST product line and the required fiber optic cables have
become the standard interface for applications such as fiber optic
communication systems, fiber to the home, fiber optic data
transmission, fiber optic CATV, local area networks (LAN), optical
test instruments, fiber optic sensors, and more. This product This
product is not only used in these fields, but also suitable for
industrial, aerospace and defense applications.
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the light energy output from the transmitting
fiber can be coupled to the receiving fiber to the maximum extent
possible and the impact on the system due to its intervention in
the optical link can be minimized. Fiber optic patch cord is a
passive optical device to realize the active connection between
optical fibers, it also has the function of connecting optical
fibers to active devices, optical fibers to other passive devices,
optical fibers to systems and instruments.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Features:
Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitting equipment
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
