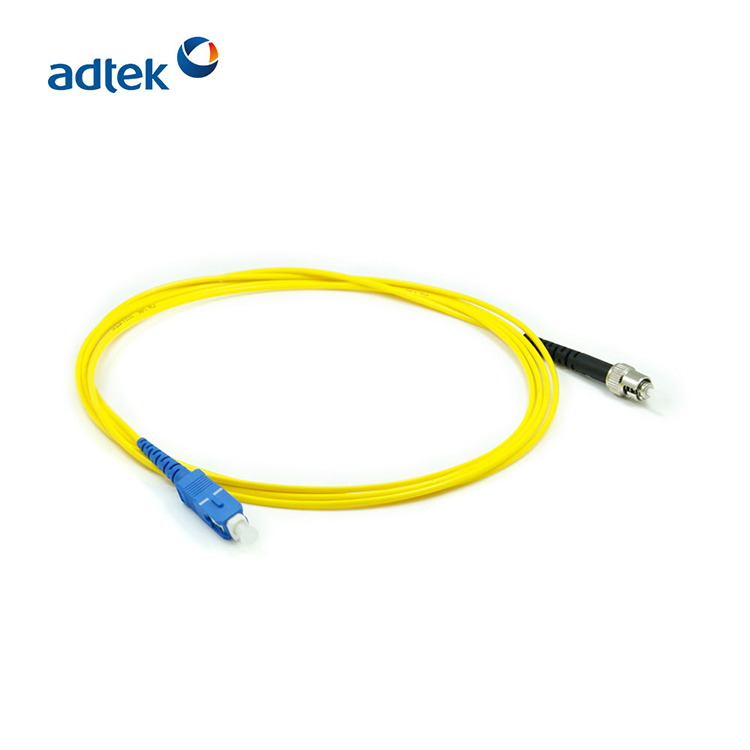

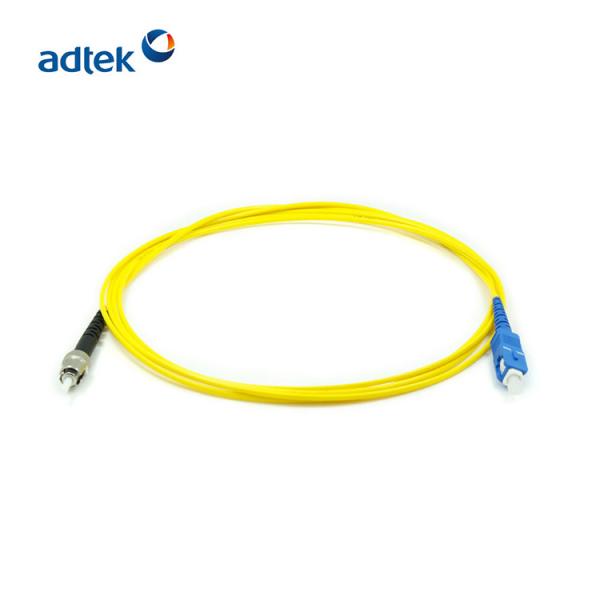

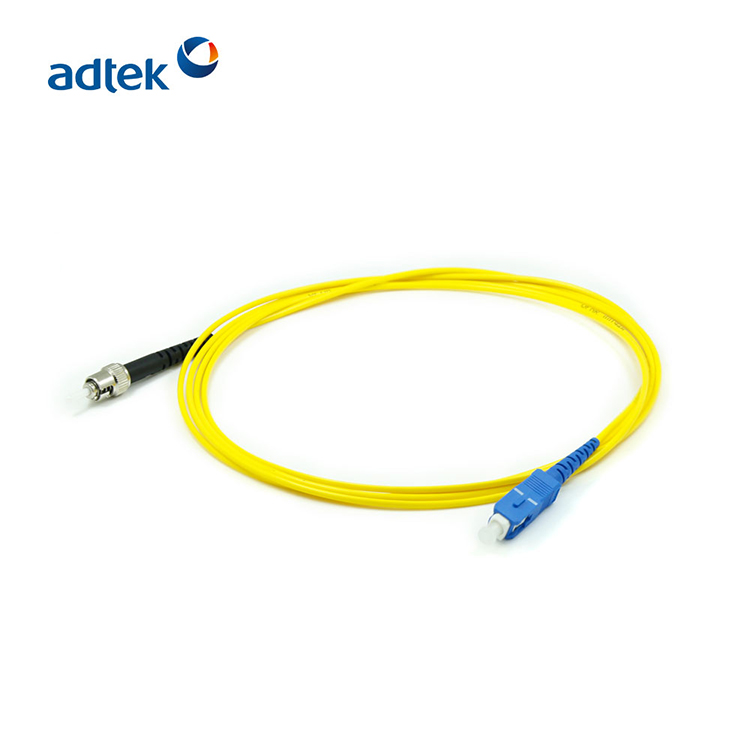

ST-SC/UPC Simplex 9/125 Singlemode Fiber Cable 3M PVC Yellow Fiber
Patch Cord
1. Using high precision ceramic insert with small concentricity
error and inner hole diameter to provide better insertion loss and
return loss to avoid degradation of transmission performance and
damage to optical transceiver devices.
2. Introduction of foreign advanced grinding technology and
grinding equipment to ensure that the optical fiber's circular
grinding offset, the fiber's depression, the fiber's surface
without scratches and defects, the size of the radius of curvature
of the ceramic capital end face and other grade parameters comply
with the standard.
3. Insertion loss is small, return loss is large,
interchangeability is good, repeated plugging performance is
excellent, easy to use.
4. Can provide a full set of customized services according to
customer requirements. 5.
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Compliance with ANSI / TIA / EIA and ISO / IEC requirements for
durability, moisture resistance, coupling stress, fiber optic
tensile force and adaptability to harsh environments such as
humidity, temperature extremes, plugging and unplugging forces and
cable tensile stress, impact and vibration.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
1.Low insertion loss, high return loss, Good Repeatability and
interchange ability
2.This product is made of new ceramic insert with excellent
performance, stability and durability
3.The products conform to the international IEC standard, and are
appreciated by the majority of engineering wiring companies.
4.PVC self sealed bag packaging. Equipped with dust cap to ensure
communication quality is not affected
5.Each pigtail is strictly testedtest report is packed with product
Type
Performance | Singlemode | Multimode |
|
| Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
