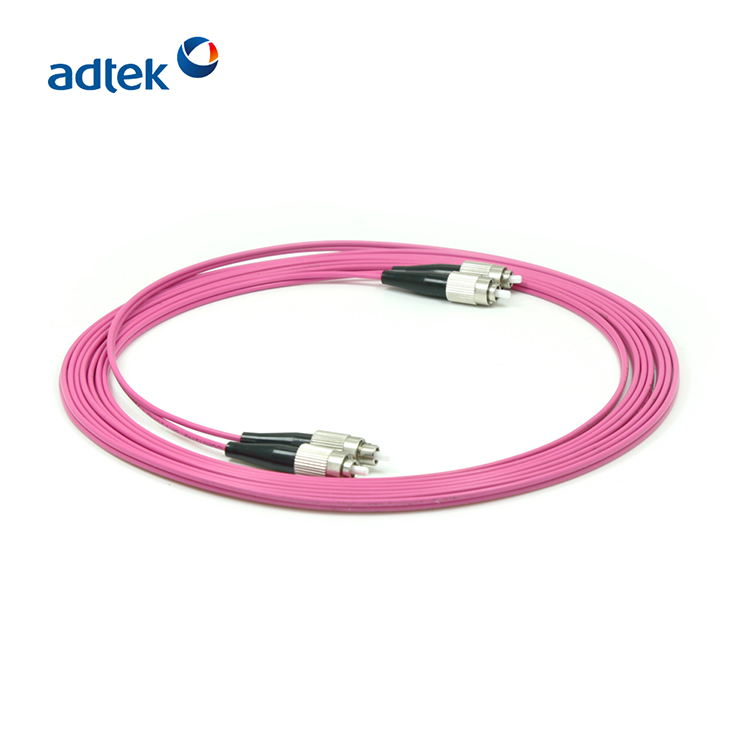

3M PVC / LSZH Fiber Optic Patch Cord Duplex FC-FC 2.0mm 50/125 OM4
1. High precision ceramic insert with small concentricity error and
bore diameter to provide better insertion loss and return loss to
avoid degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced grinding technology and grinding equipment are used to
ensure that the surface of the optical fiber is free of scratches
and defects, and that the technical parameters such as the circular
grinding offset of the fiber, the depression of the fiber and the
radius of curvature of the ceramic end face meet the specified
standards.
3. The components are all optically tested and tested in accordance
with ROHS standards.
4. ANSI / TIA / EIA and ISO / IEC requirements for durability,
moisture resistance, coupling stress, fiber tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, insertion and removal forces and cable tensile stress,
impact and vibration.
5. Low insertion loss, high return loss, good interchangeability,
excellent repetitive plugging performance and ease of use.
6. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃).
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
APPLICATION:.
•Smiton's optical fiber patch cord used as cross-connect jumpers,
equipment and work area cords in fiber 0ptic telecommunications and
FTTH (Fiber To The Home);CATV & CCTV;Data Processing Networks
•Mechanical
Connector ferrule: ceramic
End-face radius of curvature: 10 mm < R < 30 mm
Apex offset: < 50 μm
Cable material: PVC
Operation temperature: -20 °C to +70 °C
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
