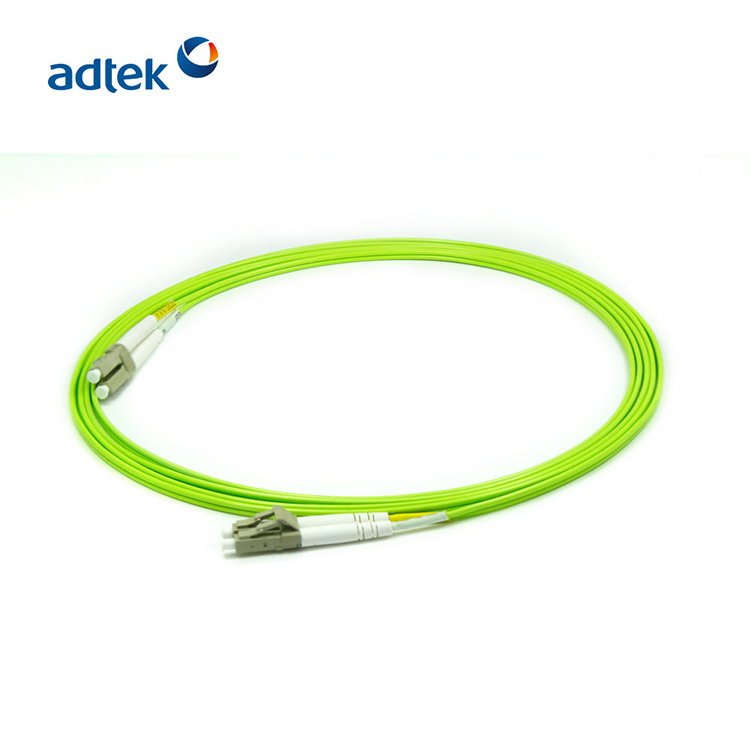

LC/UPC-LC/UPC Duplex 3.0mm OM5 PVC/LSZH 3MM Fiber Optic Patch Cord
1. Advanced foreign grinding technology and grinding equipment are
introduced to ensure that the optical fiber's circular grinding
offset, the fiber's depression, the fiber's surface without
scratches and defects, the size of the radius of curvature of the
ceramic capital end face and other grade parameters comply with the
standard
2. Components are all optically tested and tested in accordance
with ROHS standards.
3. Small insertion loss, large return loss, good
interchangeability, excellent repetitive plugging performance, easy
to use.
4. Full set of customization services can be provided according to
customer requirements.
5. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
6. ANSI / TIA / EIA and ISO / IEC requirements for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
LC UPC to LC UPC Fiber Optic Patch Cord
This fiber optic patch cord product is a piece of certain lengths
of fiber cable (length customized) with one FC UPC connector at one
end, and one LC UPC connector at another end (two connectors in
total). Fiber optic patch cords are utilized to be rapidly and
conveniently connected to CATV, an optical switch or other
telecommunication equipment.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
