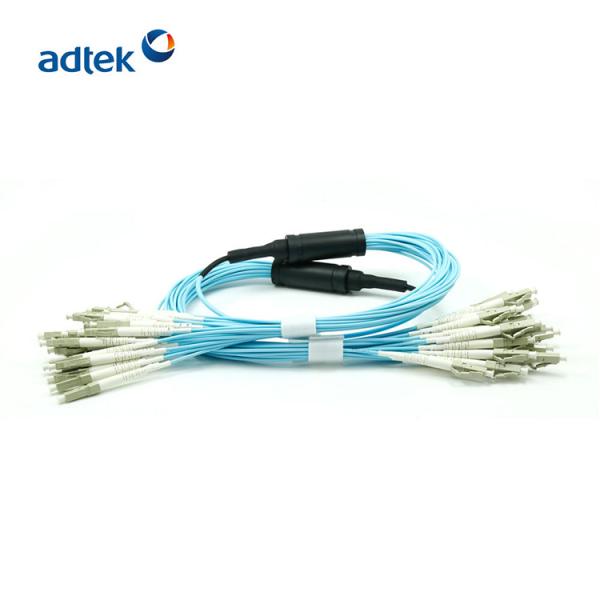

24 Fibers OM3 Fiber Optic Patch Cord Break-out Cable Branch OD
2.0mm LC-LC Multimode Aqua
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Frequency bandwidth,large communication capacity.Low insertion
loss, low return loss, long transmission
distance.Anti-electromagnetic interference.No crosstalk
interference, good confidentially.Small size and light weight.Meet
IEC, JIS, Bellcore international standard requirements.Stable
signal and environmental.Use standard LC, SC, ST, FC connectors,
support simplex or duplex.
| Connector Type |
Performance Level
|
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
The fiber optic patch cords are available in all connector
styles,Various color cable available upon customers' request,OS2
(9/125um), OM1 (62.5/125um), OM2 (50/125um),OM3 (50/125um) OM4
(50/125um) OM5 (50/125um) are available.Any length is available
upon request.For jacket, PVC (Riser) is normal and LSZH & Plenum
are also available.For cable type, G655 & G657 are also available.
Why cooperate with adtek?
Experiences: More than 12 years professional experiences in fiber
optic patch cord industry.
Product serialization: form extensible product series that covers
the market.
Flexibility: The modular design support high scalability and a
flexible combination and collocation. Fast delivery.
Practicality: Close to customer's requirement and reduce the
operating costs.
Adaptability: Customer-oriented, providing highly adaptable
customized development solutions to meet customer's specific
applications.
Market foresight: Closely link to the upstream and downstream of
the industry chain, follow up and master the newest technology and
development trend, provide the most competitive products and
solutions.
L/T For New Clear Fiber Patch Cable workshop:
Capacity : LC 80,000pcs connectors / Day.
2 Million pcs connectors /Month.
MPO 2000pcs/day,50000pcs/M
12Cores MPO-LC cassette 400PCS/day
Delivery Date:5~7days,urgently order can be controled in 3 days.
