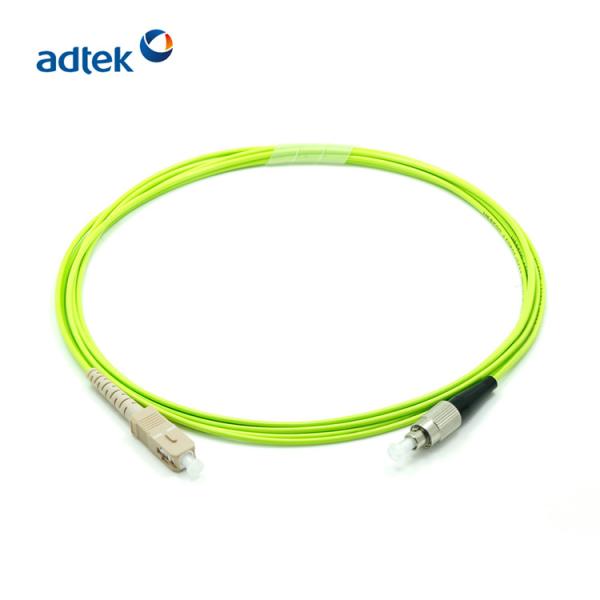

SC-FC / UPC Simplex Fiber Optic Patch Cable 2.0mm OM5 Fiber Cable
| Range of Mode | Singlemode or Multimode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |

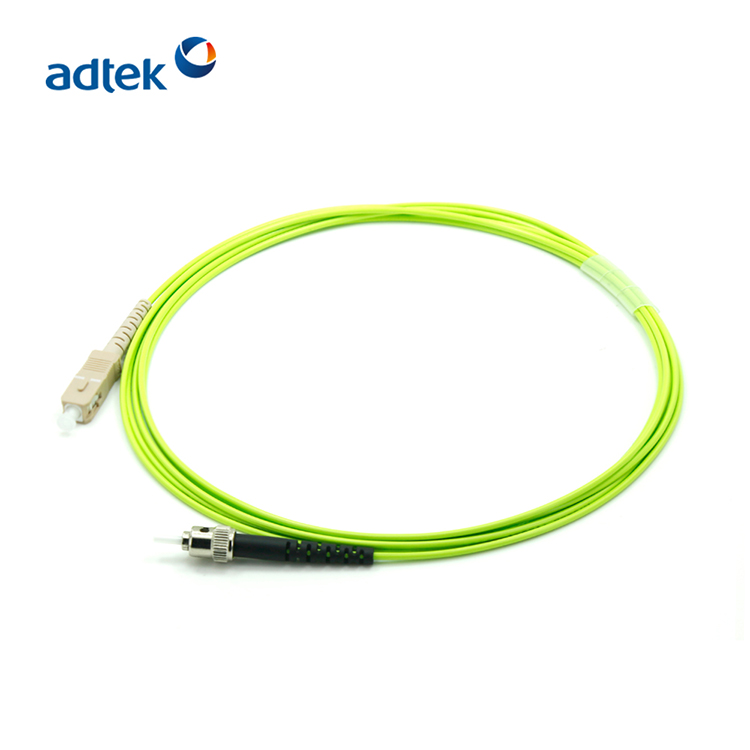

Detailed Images
1. Fiber optic patch cords are available in all standard connector
styles, all standard fiber types and all standard cable
configurations to meet all your interconnection needs. They are
available in any length .
2.The patch cord are factory terminated, assembled, tested and
inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable,
LSZH, plenum, and premium customized specs available upon request,
and 100% factory tested to ensure the performance to meet
TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All
assemblies are tested to meet Telcordia GR326-CORE.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
1. High precision ceramic insert with small concentricity error and
bore diameter to provide better insertion loss and return loss to
avoid degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced grinding technology and grinding equipment are used to
ensure that the surface of the optical fiber is free of scratches
and defects, and that the technical parameters such as the circular
grinding offset of the fiber, the depression of the fiber and the
radius of curvature of the ceramic end face meet the specified
standards.
3. The components are all optically tested and tested in accordance
with ROHS standards.
4. ANSI / TIA / EIA and ISO / IEC requirements for durability,
moisture resistance, coupling stress, fiber tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, insertion and removal forces and cable tensile stress,
impact and vibration.
5. Low insertion loss, high return loss, good interchangeability,
excellent repetitive plugging performance and ease of use.
6. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃).
