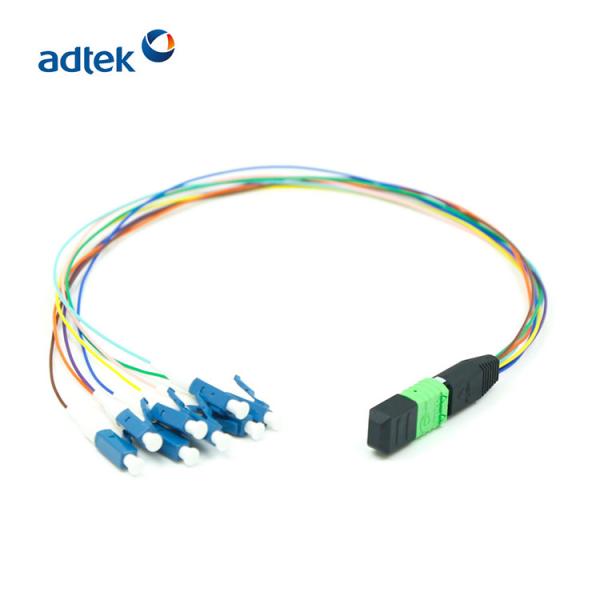

12 Cores Single Mode Fiber Optic Cable 3.0mm MPO To LC Fiber Cable
Simplex
ADTEK's MTP /MPO fiber optic patch cord series trunk cable
solutions provide an efficient way to quickly install large
quantities of cable while offering high flexibility in unplugging
and reuse. They are especially suited for applications requiring
high density, rapid deployment and high performance. These high
performance factory tested assemblies come pre-terminated with 12
fiber MTP connectors and are available in customer specified
lengths. 12/24/36/48/72/96/144 fibers are available. Users can also
choose from ribbon, small round, or kai-loaded fiber optic cables
depending on the project.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
1,Adopt imported grinding equipment and grinding materials,
advanced production process to ensure more stable transmission.
2,All components are optically tested and tested in accordance with
ROHS standards.
3, Meet ANSI / TIA / EIA; ISO / IEC, GR and other international
standards for durability, moisture resistance, coupling stress,
fiber tensile force and the ability to adapt to harsh environments
such as moisture, extreme temperatures, plugging and cable pulling
stress, impact and vibration requirements.
4, simple push-pull latching structure, easy and intuitive to
insert and remove, suitable for different installation
environments.
5,Adapted to the working temperature (-40℃~+75℃), storage
temperature (-40℃~+85℃)
| Type | Singlemode APC | Multimode |
| Performance | Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
