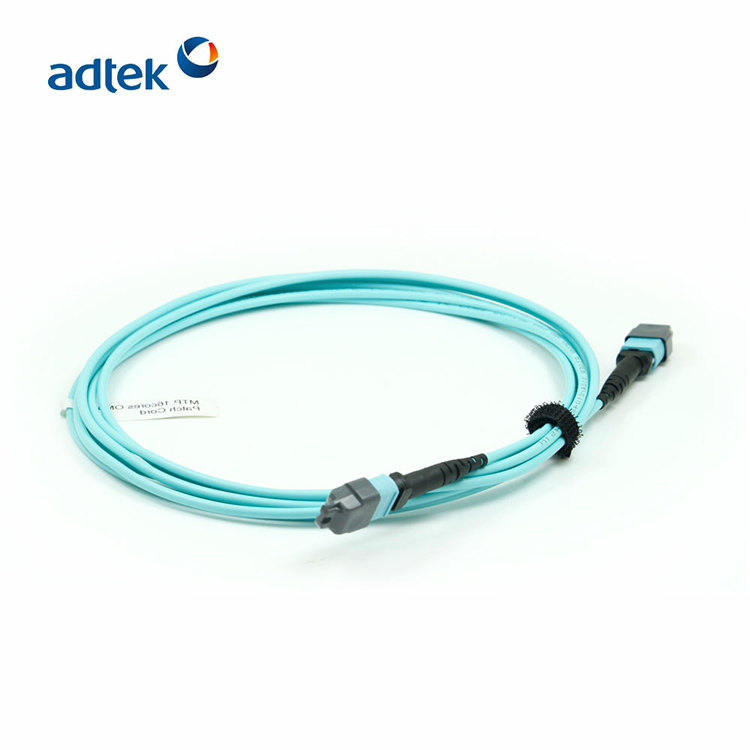

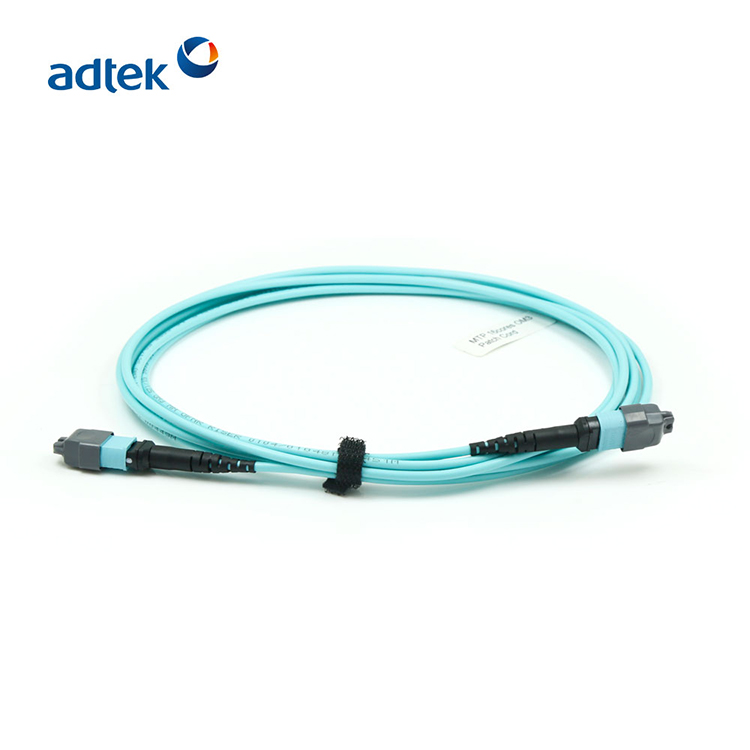

24 Core MPO Optical Fiber Patch Cord 1.8mm 2.0mm PC / UPC 3M Trunk
Cable
Product Description
MPO trunk cable, a cost-effective alternative to time-consuming
field termination, is designed for high-density fiber patching in
data centers which need space saving and reduce cable management
troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4
optics direct connection and high-density data center applications.
| Range of Mode | Singlemode or Multimode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Item | Single mode | Multimoe |
| PC | UPC | Other Mode | 62.5/125 | 50/125 OM1/2 | 50/125 OM3/4/5 |
| Insert. Loss | 0.2dB Max. (0.15dB Elite) | 0.2dB Max. (0.15dB Elite) |
| Return Loss | ≥50 dB | ≥55 dB | ≥60 dB | ≥35 dB |
| Insert. Loss/MTP or MPO | 0.7dB Max. (0.35 dB Elite.) | 0.5dB Max. (0.35dB Elite.) |
| Return Loss s/MTP or MPO | ≥50dB | ≥55 dB | ≥60 dB | ≥20dB |
| Pull strength | ≥68N | ≥68N | ≥68N | ≥68N |
1,Used to distribute part or all of the optical fiber in the relay
cable to other areas. Male or female plugs can be selected at both
ends;
2,Use 12 fiber MTP® connector for terminal;
3,Round micro core or Kay installed cable to meet different
installation requirements;
4,There are 12/24/36/48/72/96 and 144 types of fibers;
5,Pull eye design, suitable for different installation environment;
6,High-precision factory pre-termination and testing according to
TIA/EIA and IEC standards.
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate
rapid deployment of high density backbone cabling in data centers
and other high fiber environment, reducing network in stallation or
reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it
offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions
using a compact and rugged microcables structre. The compact cable
optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components ,
Low loss elite versions are offered, featuring low insertion loww
for demanding high speed networks where power budgets are critical.
