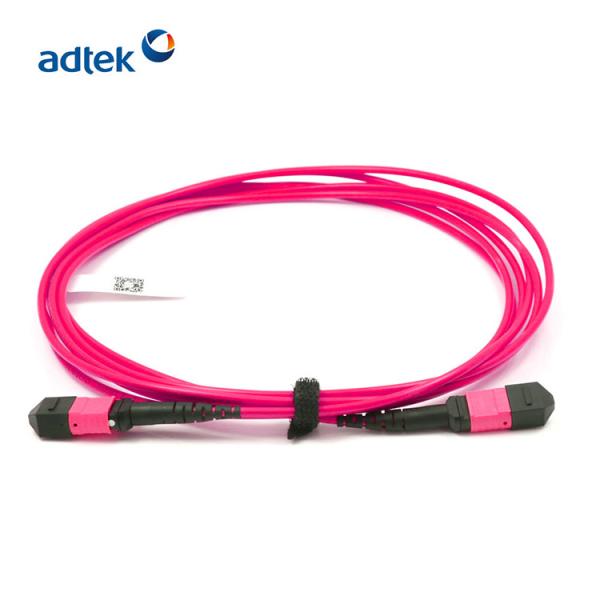

MPO MTP patch cord om4 12cores pvc jacket violet color 3.0mm
Product Description
MPO to MPO multimode patch cord MM optical fiber patch cord 3m
customized length
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it
offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions
using a compact and rugged microcables structre. The compact cable
optimize cableway use and improve airflow.These MPO/MTP cable are
build with the highest quality components , Low loss elite versions
are offered, featuring low insertion loww for demanding high speed
networks where power budgets are critical.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Features:
1; The connectors are comply with IEC, Telcordia-GR-326-Core
standards;
2; Different size & color boot option;
3; Low insertion loss; High return loss;
4; 100% interferometer measurement available;
Item | Single mode | Multimoe |
| PC | UPC | APC | 62.5/125 | 50/125 OM1/2 | 50/125 OM3/4/5 |
Insert. Loss
| 0.2dB Max. (0.15dB Elite) | 0.2dB Max. (0.15dB Elite) |
| Return Loss | ≥50 dB | ≥55 dB | ≥60 dB | ≥35 dB |
| Insert. Loss/MTP or MPO | 0.7dB Max. (0.35 dB Elite.) | 0.5dB Max. (0.35dB Elite.) |
| Return Loss s/MTP or MPO | ≥50dB | ≥55 dB | ≥60 dB | ≥20dB
|
| Pull strength | ≥68N | ≥68N | ≥68N | ≥68N |
1,Adopt imported grinding equipment and grinding materials,
advanced production process to ensure more stable transmission.
2,All components are optically tested and tested in accordance with
ROHS standards.
3, Meet ANSI / TIA / EIA; ISO / IEC, GR and other international
standards for durability, moisture resistance, coupling stress,
fiber tensile force and the ability to adapt to harsh environments
such as moisture, extreme temperatures, plugging and cable pulling
stress, impact and vibration requirements.
4,Simple push-pull latching structure, easy and intuitive to insert
and remove, suitable for different installation environments.
5,Adapted to the working temperature (-40℃~+75℃), storage
temperature (-40℃~+85℃)
ADTEK's MTP /MPO fiber optic patch cord series trunk cable
solutions provide an efficient way to quickly install large
quantities of cable while offering high flexibility in unplugging
and reuse. They are especially suited for applications requiring
high density, rapid deployment and high performance. These high
performance factory tested assemblies come pre-terminated with 12
fiber MTP connectors and are available in customer specified
lengths. 12/24/36/48/72/96/144 fibers are available. Users can also
choose from ribbon, small round, or kai-loaded fiber optic cables
depending on the project.
