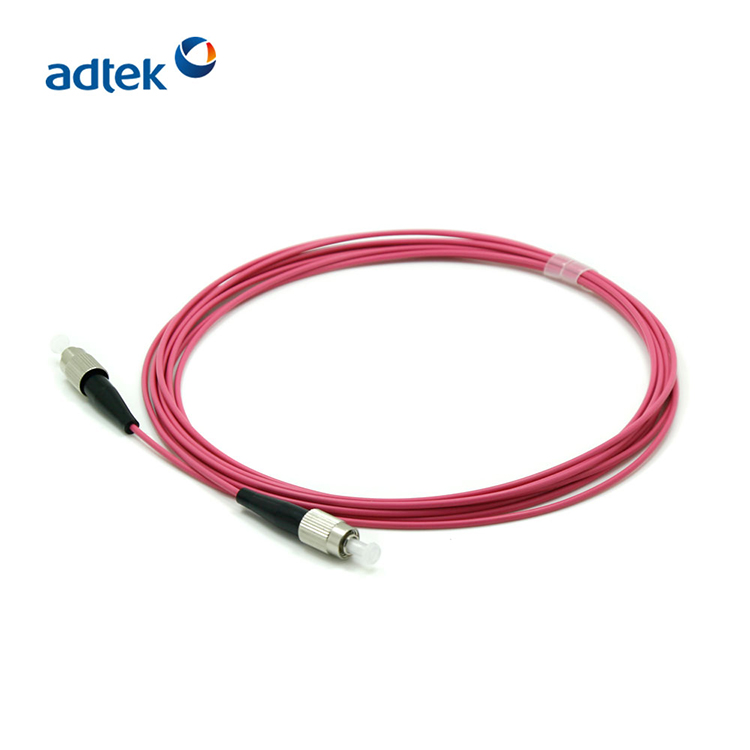

OM4 Fiber Optic Multimode simplex 2.0mm 50/125 Fiber optic patch
cord
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Features
Low insertion loss .
Good waterproof preformance.
Low smoke, zero halogen and flame retardant sheath.
Smaller diameter, simple structure, light weight, and high
practicability.
Special low-bend-sensitivity fiber provides high bandwidth data
transmission.
Applications
Optical fiber communication systems Optical fiber data transmission
Building network access Cabling system ODF
FTTX applications
| Connector Type |
Performance Level
|
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
1. Advanced foreign grinding technology and grinding equipment are
introduced to ensure that the optical fiber's circular grinding
offset, the fiber's depression, the fiber's surface without
scratches and defects, the size of the radius of curvature of the
ceramic capital end face and other grade parameters comply with the
standard
2. Components are all optically tested and tested in accordance
with ROHS standards.
3. Small insertion loss, large return loss, good
interchangeability, excellent repetitive plugging performance, easy
to use.
4. Full set of customization services can be provided according to
customer requirements.
5. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
6. ANSI / TIA / EIA and ISO / IEC requirements for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration.
Why cooperate with adtek?
Experiences: More than 12 years professional experiences in fiber optic patch
cord industry.
Product serialization: form extensible product series that covers the market.
Flexibility: The modular design support high scalability and a flexible
combination and collocation. Fast delivery.
Practicality: Close to customer's requirement and reduce the operating costs.
Adaptability: Customer-oriented, providing highly adaptable customized
development solutions to meet customer's specific applications.
Market foresight: Closely link to the upstream and downstream of the industry chain,
follow up and master the newest technology and development trend,
provide the most competitive products and solutions.
L/T For New Clear Fiber Patch Cable workshop:
Capacity : LC 80,000pcs connectors / Day.
2 Million pcs connectors /Month.
MPO 2000pcs/day,50000pcs/M
12Cores MPO-LC cassette 400PCS/day
Delivery Date:5~7days,urgently order can be controled in 3 days.
