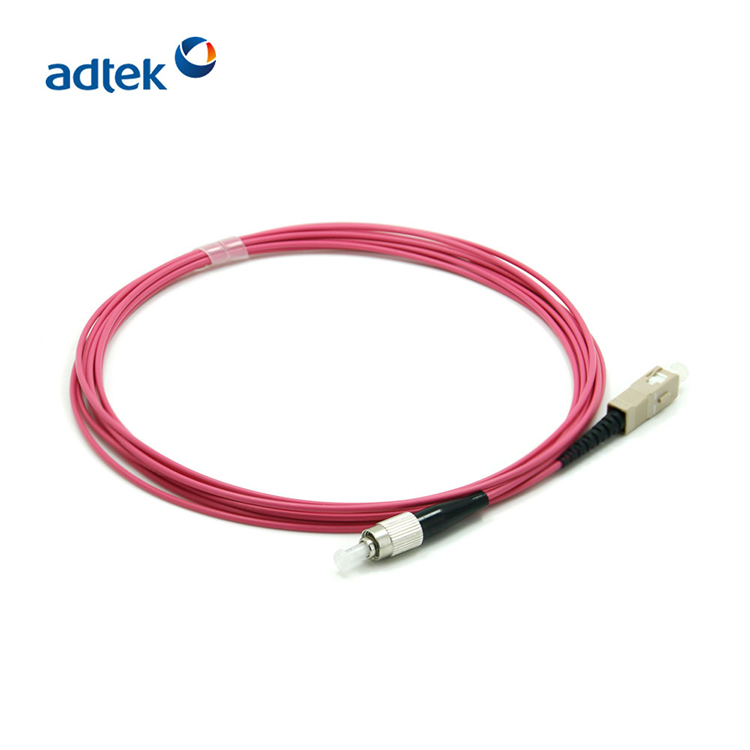

Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M
Fiber Optic Cable
1. Advanced foreign grinding technology and grinding equipment are
introduced to ensure that the optical fiber's circular grinding
offset, the fiber's depression, the fiber's surface without
scratches and defects, the size of the radius of curvature of the
ceramic capital end face and other grade parameters comply with the
standard
2. Components are all optically tested and tested in accordance
with ROHS standards.
3. Small insertion loss, large return loss, good
interchangeability, excellent repetitive plugging performance, easy
to use.
4. Full set of customization services can be provided according to
customer requirements.
5. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
6. ANSI / TIA / EIA and ISO / IEC requirements for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
1.What is the Patch cord/Pigtail features?
*Single mode and Multimode
*Cable 0.9mm,2.0mm,2.4mm or 3.0mm with simplex or duplex and
4,6,8,12,24,48 cores
*Custom order length
*Cable color green , yellow , orange and customized
*All parts compliant with RoHS
*IEC standard compatible
*GR-326-CORE Compliant
2.What is the Patch cord/Pigtail applications?
*FTTX + LAN
*Optical fiber CATV
*Optical communication system
*Telecommunication
Our Value:
Initiative, Hard working ,Efficiency,Innovation, Grateful, Sharing.
Our Philosophy:
Professional casts quality,cooperation makes win-win future.
Our Solutions:
Fastest, Effective, Reliable, Flexible And Professional OEM/ODM
Solutions.
Our Certificate:
ISO9001:2015, ISO14001:2015,OHSAS18001:2007 etc.
Our Team:
We serve our every customer with fastest and most professional
response.
Our Patents:
We have 20 patents and we'll go on creating new products to master
latest market trend.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
