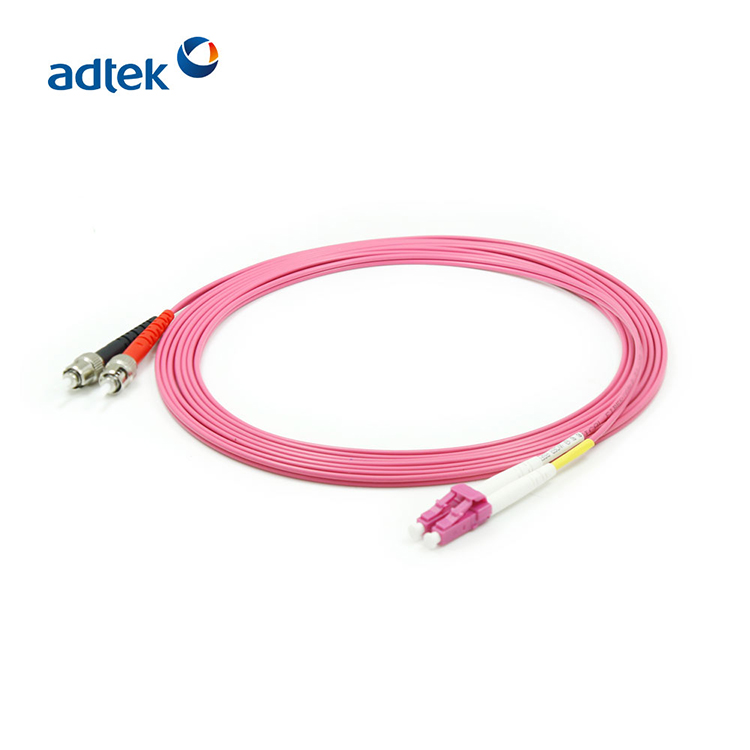

LC To ST Multimode Duplex Fiber Optic Patch Cable OM4 Optical Fiber
Patch Cord
It is a device used to make a removable (movable) connection
between optical fiber and optical fiber, which is a precision
buttressing of the two ends of the optical fiber so that the
optical energy output from the transmitting fiber can be coupled to
the receiving fiber to the maximum extent and the impact on the
system caused by its intervention in the optical link can be
minimized. Fiber optic patch cable is a passive optical device to
achieve the active connection between optical fibers, it also has
the function of connecting optical fibers to active devices,
optical fibers to other passive devices, optical fibers to systems
and instruments. It also has the function of connecting fiber to
active devices, fiber to other passive devices, fiber to systems
and instruments.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
Optic fiber patch cord
Fiber Optic Patch Cable is also known as fiber optic jumper or
fiber optic patch cord. It is composed of a fiber optic cable
terminated with different connectors on the ends. Fiber optic patch
cables are used in two major application areas: computer work
station to outlet and patch panels or optical cross connect
distribution center. TTI fiber provides various types of fiber
optic patch cables including single-mode, multimode, multi-core,
armored patch cables, as well as fiber optic pigtails and other
special patch cables. For most of the patch cables, the SC, ST, FC,
LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In
addition, we also have MTP/MPO cables in stock.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
Feature
Low insertion loss high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Application
Fiber optic communication networks
Optical access network
Data processing networks
Premise installations
