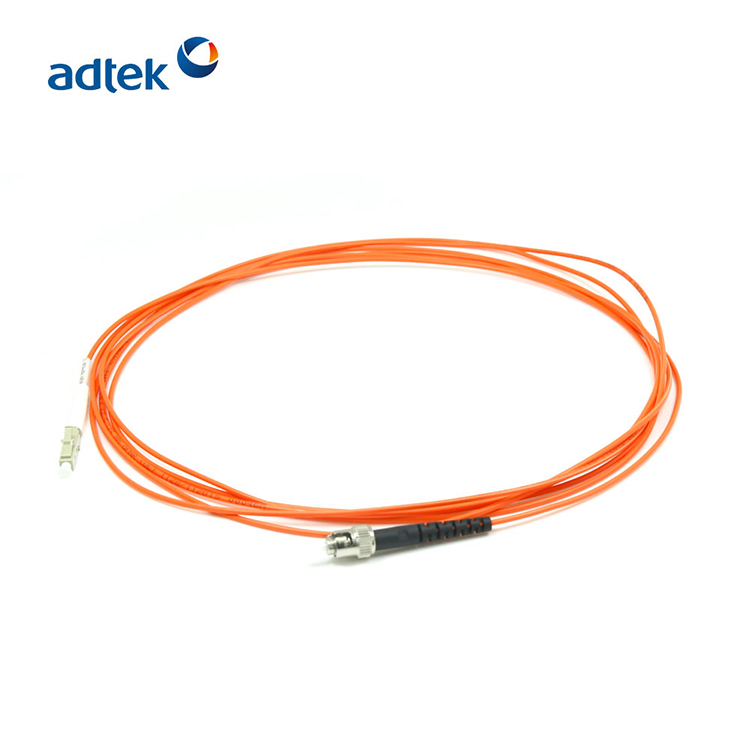

3M PVC / LSZH Multimode Fiber Patch Cord LC/UPC-ST/UPC Simplex
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC,Other Type |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
Feasures:
•Low insertion loss,high return loss
•Good Compatibility
•High precision of mechanical dimensions
•High reliability&stability
•PC,APC,UPC optional,cable length optional
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
Application:
•Optical access network
•Optical-fiber CATV
•A local area network(LAN)
•Test Equipment
1. Using imported ceramic pins, high-quality fiber optic cable,
providing better insertion loss and return loss, avoiding the
degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced foreign grinding technology and grinding equipment, to
ensure that the optical fiber circular grinding offset, fiber
depression, the surface of the fiber without scratches and defects,
the size of the radius of curvature of the ceramic end face and
other grade parameters in line with standard regulations.
3. Small insertion loss, high return loss, good interchangeability,
excellent repetitive plugging performance, easy to use.
4. Provide a full set of customized services according to customer
requirements
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Comply with ANSI / TIA / EIA and ISO / IEC for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration requirements.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
