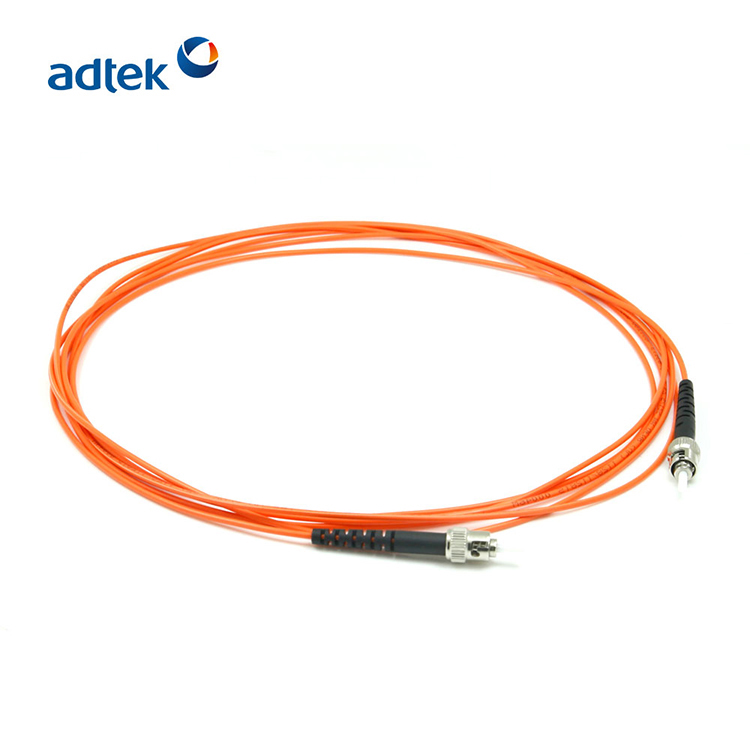

OM1 / OM2 Multimode Fiber Patch Cord ST To ST for Telecommunication
Networks
Type
Performance | Singlemode APC | Multimode |
|
| Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
1. Using imported ceramic pins, high-quality fiber optic cable,
providing better insertion loss and return loss, avoiding the
degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced foreign grinding technology and grinding equipment, to
ensure that the optical fiber circular grinding offset, fiber
depression, the surface of the fiber without scratches and defects,
the size of the radius of curvature of the ceramic end face and
other grade parameters in line with standard regulations.
3. Small insertion loss, high return loss, good interchangeability,
excellent repetitive plugging performance, easy to use.
4. Provide a full set of customized services according to customer
requirements
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Comply with ANSI / TIA / EIA and ISO / IEC for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration requirements.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
| Item | SM | MM |
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) |
| Custom | | | | |
| Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
| Custom | | | | |
| Durability(500 Mating) | 0.2 dB Max. Increase |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+75°C |
| Remark: | Ferrule Concentricity<1μm |
| Ferrule inner diameter tolerance+1/ 0μm |
| Ferrule outer diameter tolerance±0.5μm |
| Insertion loss<0.1dB random mating |
FEATURE
1. Integrated spring-loaded shutter
2. Simplex and duplex assemblies available
3. Singlemode and multimode fiber optic cable
4. PC and APC polishing available
5. Hybrid patch cords available upon request
6. Fan out available
CHARACTERISTIC
1. Low insertion loss, high return loss
2. Good compatibility
3. High precision of mechanical dimensions
4. High reliability & stability
5. PC, APC, UPC optional, cable length optional
6. Options available for cable colors
APPLICATION
1. Telecommunication networks
2. Building access
3. Cabling system. ODF
4. CATV
5. FTTX applications
