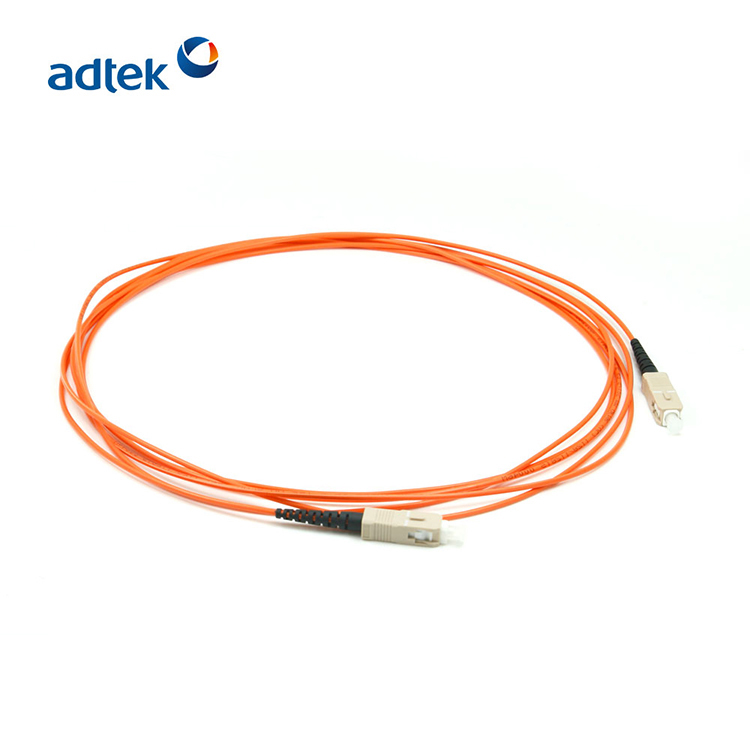

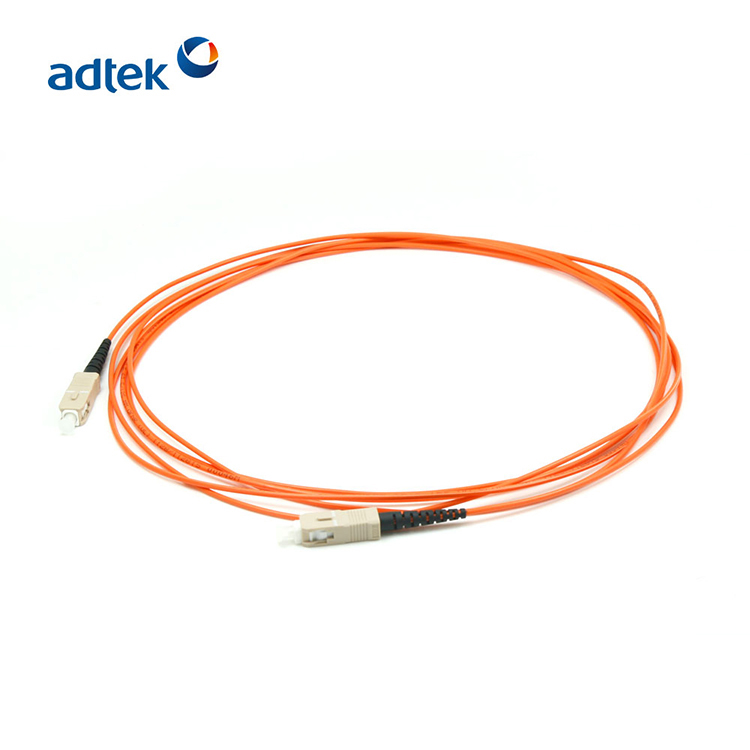

OM2 50/125um Multimode Fiber Optic Cable SC SC Patch Cord Simplex
1. Using high precision ceramic insert with small concentricity
error and inner hole diameter to provide better insertion loss and
return loss to avoid degradation of transmission performance and
damage to optical transceiver devices.
2. Introduction of foreign advanced grinding technology and
grinding equipment to ensure that the optical fiber's circular
grinding offset, the fiber's depression, the fiber's surface
without scratches and defects, the size of the radius of curvature
of the ceramic capital end face and other grade parameters comply
with the standard.
3. Insertion loss is small, return loss is large,
interchangeability is good, repeated plugging performance is
excellent, easy to use.
4. Can provide a full set of customized services according to
customer requirements. 5.
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Compliance with ANSI / TIA / EIA and ISO / IEC requirements for
durability, moisture resistance, coupling stress, fiber optic
tensile force and adaptability to harsh environments such as
humidity, temperature extremes, plugging and unplugging forces and
cable tensile stress, impact and vibration.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5
Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
Features:
- Low insertion loss
- High return loss
- Good repeatability
- Good interchange
- Excellent environmental adaptability
- Applications:
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitting equipment
- Defense combat readiness
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
