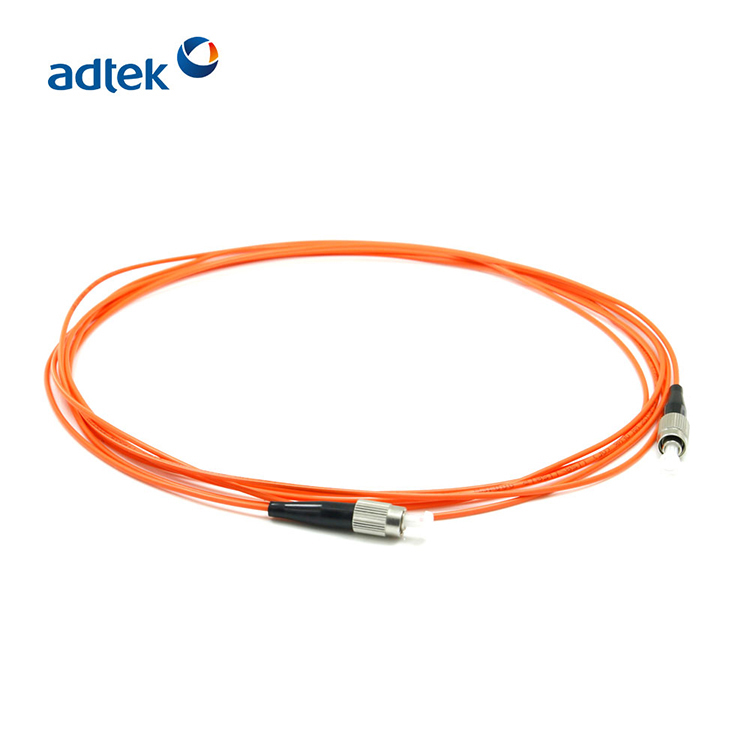

FC/UPC To FC/UPC SX Fiber Patch Cable OM1 OM2 Orange Test
Wavelength 1310nm / 1550nm
It is a device used to make removable (movable) connections between
optical fibers. It is a precision buttressing of the two ends of an
optical fiber so that the optical energy output from the
transmitting fiber can be coupled to the receiving fiber to the
maximum extent possible and the impact on the system caused by its
intervention in the optical link can be minimized. Fiber optic
patch cable is a passive optical device to achieve the active
connection between optical fibers, it also has the function of
connecting optical fibers to active devices, optical fibers to
other passive devices, optical fibers to systems and instruments.
It also has the function of connecting fiber to active devices,
fiber to other passive devices, fiber to systems and instruments.
| Item | SM | MM |
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) |
| Custom | | | | |
| Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
| Custom | | | | |
| Durability(500 Mating) | 0.2 dB Max. Increase |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+75°C |
| Remark: | Ferrule Concentricity<1μm |
| Ferrule inner diameter tolerance+1/ 0μm |
| Ferrule outer diameter tolerance±0.5μm |
| Insertion loss<0.1dB random mating |
Description
A patch cord is a fiber optic cable used to attach one device to
another for signal routing.
FC stands for Fixed Connection. It is fixed by way of a threaded
barrel housing. FC connectors are generally constructed with a
metal housing and are nickel-plated.
Type
Performance | Singlemode APC | Multimode |
|
| Standard Loss | Low Loss | Standard Loss | Low Loss |
| Insertion loss | Maximum Value | ≤0.7dB | ≤0.35dB | ≤0.5dB | ≤0.35dB |
| Typical Value | 0.4dB | 0.2dB | 0.35dB | 0.2dB |
| Return Loss | ≥60 dB | ≥20dB |
| Test Wavelength | 1310nm / 1550nm | 850nm / 1300nm |
Characteristics
1. Simplex and duplex connector available
2. High precision of mechanical dimensions.
3. Good exchange ability and good durability;
4. Low Insertion Loss, High temperature Stability and Good
exchangeability.
5 Fan-out Available, Pigtail Available, Various
Boot(cable) Size Available
1. Using imported ceramic pins, high-quality fiber optic cable,
providing better insertion loss and return loss, avoiding the
degradation of transmission performance and damage to optical
transceiver devices.
2. Advanced foreign grinding technology and grinding equipment, to
ensure that the optical fiber circular grinding offset, fiber
depression, the surface of the fiber without scratches and defects,
the size of the radius of curvature of the ceramic end face and
other grade parameters in line with standard regulations.
3. Small insertion loss, high return loss, good interchangeability,
excellent repetitive plugging performance, easy to use.
4. Provide a full set of customized services according to customer
requirements
5. All components are optically tested and tested in accordance
with ROHS standards.
6. Comply with ANSI / TIA / EIA and ISO / IEC for durability,
moisture resistance, coupling stress, fiber optic tensile force and
adaptability to harsh environments such as humidity, temperature
extremes, plugging and unplugging forces and cable tensile stress,
impact and vibration requirements.
7. Operating temperature (-40℃~+75℃), storage temperature
(-40℃~+85℃)
